Journal of Steroids & Hormonal Science

Infertility is one of the most important issues among married couples and it represents a major clinical problem affecting people not just medically but psychologically too.

It has been demonstrated that 15% of all the couples in the US are infertile and male factor is responsible for the 25% of the cases [1].

Couples that have not achieved a pregnancy in the last 12-24 months are considered as barren.

The cause of male infertility with abnormal semen parameters remains unknown in 25% of men [2]. In many Western countries, women postpone their first pregnancy until they have finished their education and have started a career, so also female age is the important variable influencing outcome in assisted reproduction. In fact compared to a woman at 25 years old, the fertility potential is reduced to 50% at age 35, to 25% by 38 years and <5% at over 40 years [3].

Men with idiopathic infertility are prone to receive a number of empirical therapies.

Otherwise while 25% of men with sperm density lower than 12.5 million per ml could father a child through spontaneous conception, 10% with a normal female partner cannot contribute to pregnancy even with a number of more than 25 million per ml [3].

These findings suggest that there could be other parameters that affect pregnancy and study outcomes based only on improvement in semen parameters are not enough. A more effective outcome parameter would probably be the pregnancy rate since that is the ultimate end point of therapy. Commonly used medications include hormonal medications as follicle stimulating hormone (FSH), androgens (mesterolone, testosterone undecanoate/enanthate) [3,4] and antiestrogen (tamoxifen/clomiphen citrate); antioxidant like glutathione, lycopene, vitamin E; Sperm vitalizer as L-carnitine, coQ10.

Of the many causes of male infertility, oxidative stress (OS) has been shown to affect the fertility status and for this reason it has been widely studied in the past few years.

Spermatozoa, like all other aerobic cells are particularly susceptible to oxidative stress induced damage because of the large polyunsaturated fat content in their membranes. Men with high ROS may have a lower fertility potential compared to those with low ROS [5].

High levels of reactive oxygen species in semen have been correlated with reduced sperm motility and damage to sperm nuclear DNA [5].

For example, IL-1 α, IL-1 β and tumor necrosis factorα (TNF-α), stimulate sperm peroxidation by increasing ROS generation [6]; IL-6 has been shown to play a pivotal role in the induction of capacitation and the acrosomal reaction in sperm [7]. However, high levels of cytokines in the semen have been correlated with sperm injury, most notably cell membrane lipid peroxidation in the presence of elevated IL-6 [6,8]. Further, increased levels of IL-6 have also been noted in the seminal fluid of infertile men [9].

Also, IL-1, IL-6, IL-8 and TNF have all been shown to induce increased ROS production, leading to increased sperm cell membrane lipid peroxidation [6,8,10].

Interferon gamma (IFN-γ) and TNFα have been shown to decrease the motility of spermatozoa.

This condition is common in cases of genitourinary tract infections and inflammation, in which oxidative mechanism produce the oxidative stress [11].

Antioxidants in seminal plasma are the most important form of protection available to spermatozoa against ROS [6,12].

That is why it is commonly used to prescribe antioxidant oral therapy for the idiopathic male oligoastenospermia to decrease oxidative stress and improve fertility.

Antiestrogens have been one of the oldest and most commonly prescribed forms of therapy for idiopathic male infertility. These drugs inhibit the negative feedback effect of estrogen on the hypothalamus and pituitary, increasing endogenous gonadotropin secretion.

Antiestrogen therapy was reported to yield pregnancy rates ranging from 20%–40% following 6-9 months of therapy [13] from the hypothalamus and FSH and LH secretion directly from the pituitary, increasing their levels, thereby stimulating spermatogenesis [14].

Pregnancy rates following varicocelectomy were approximately 40% [15].

This is a prospective, randomized double blind, placebo-controlled study. We enrolled ninty infertile men attending our department of urology at University Federico II of Napsssles. Mean age of male partner was 29.2 ± 7.8 [±SD] while female partner mean age was 27.4 ± 6.8 [± SD]. We included a minimum of 1 year of regular unprotected sexual activity without achieving pregnancy. Inclusion criteria consisted of the repeated exhibition of oligoasthenozoospermia without detectable cause (unexplained OA). We evaluated the number of spontaneous pregnancy, sperm volume and concentration, sperm total motility, forward progressive motility and normal morphology.

Exclusion criteria included cases with known etiology or leukocytospermia, and alterated testicular volume, varicocele (as detected by clinical examination and ultrasonography) or an abnormal FSH level. Couples with combined male and female factors were excluded. Patients signed a informed consent explaining the nature of the study, the possibility of treatment failure, and possible side effects. They underwent a clinical evaluation including history taking, general examination, and genital examination for possible causes of infertility. Investigations for the male partner included semen analysis according to World Health Organization criteria [16]. Only couples with no female factor infertility were included in the study.

Patients were blindly randomized into three groups: Group A (time of infertility 2.4 ± 1.2 years [± SD]) receiving a combination of an antiestrogen [tamoxifen citrate 20 mg/day] and a natural composite with an antioxidant and androgen-mimetic action [150 mg of alga Ecklonia Bicyclis, 396 mg of Tribulus terrestris and 144 mg of polymers of d-glucosamine and n-acetyl d-glucosamine (Tradamix^®); n=30]; Group B (time of infertility 2.2 ± 1.1 years [± SD]) receiving tamoxifen citrate (n=30) and Group C (time of infertility 1.9 ± 1.0 years [± SD] receiving placebo (n=30). Treatment was continued for 6 months. All statistical measurements were performed using ANOVA tests. We wanted to have a level of significance with p<0.05.

After 6 months of therapy the cumulative number of pregnancy was markedly higher in the Group A (13 pregnancies, 33.3%) then the other two groups: Group B (6 pregnancies, 20%) and Group C (4 pregnancies, 13.3%). This difference is statistically significant (p=0.023) (Table 1).

Table 1: Pregnancy rates in the 3 Groups.

In the tables 1 and 2, are reported the changing in semen parameters before and after treatment in the three groups.

Table 2A: Semen parameters before treatment in the 3 Groups.

Sperm concentration significantly improved in the Group A from a mean 8.49 × 10⁶ cells/ml ± 5,57 at baseline to 22.1×10⁶ cells/ml ± 1,63 (p ≤ 0.001) comparing with the tamoxifen recipients (Group B) where the was an improvement from a mean 7.98 × 10⁶ at baseline to 14.43 × 10⁶ cells/ml ± 3.43 (p=0.002). Group C had an improvement of sperm number, from a concentration of 9.65 × 10⁶ cells/ml ± 6.54 to 10.53 ×10⁶ cells/ml ± 8.5 (p=0.0025) (Table 2A).

Table 2A: Semen parameters before treatment in the 3 Groups.

In Group A sperm total motility improved from 31% ± 11% at baseline to 40% ± 14% (p=0.007) whilst the forward progressive motility slightly improved from 5% ± 3% to 9% ± 4% (p=0.0034). For the other two groups there were not reported statistically significant changes of motility (Table 2B).

Table 2B: Semen parameters after treatment in the 3 Groups.

Seminal volume did not change after the treatment in the Group A (2.47 ± 1.4 at baseline, 2.9 ± 1.6 at 6 months) and no difference from Group B and placebo recipients (Group C) were observed.

No remarkable difference in sperm form was reported.

In this study, we evaluated the effectiveness of the combination of tamoxifen citrate and this natural compost in treating idiopathic male infertility. Combination therapy for male infertility has been evaluated by other investigators. Comhaire et al. [17] studied 30 men with infertility and female partners with no demonstrable cause of infertility who received conventional treatment according to the guidelines of the World Health Organization [16], and either a strong antioxidant, astaxanthin (16 mg/day), or a placebo for 3 months. The results revealed total pregnancy rates of 10.5% among the placebo cases, compared with 54.5 in the active treatment arm (p=0.028).

Our results (Table 1) are similar with the findings of Adamopolous and Comhaire, and suggest that combination therapies for male infertility should be further evaluated [18,19].

A recent short review assessing evidence-based treatments for male infertility show many methodological difficulties with these works [20] given by the short duration of most of these studies. Although married couples are allowed 1 year of unprotected intercourse to conceive before a diagnosis of infertility is made, most studies allow only an average of 3 months of observation, even if seminal parameters improve. Results of medical treatment in terms of cumulative pregnancy rates may differ if the observation period is long enough. This has been clearly suggested by the improved pregnancy rate after 6 months shown in our work as well as by Adamopolous et al. [18] and Ghanem et al. [20]. This study suggests that combination of an antiestrogen with a substance with an antioxidant and androgen-mimetic action is a valid therapy for men with oligoasthenozoospermia.

This composite (Tradamix^®) contains these three compounds: alga Ecklonia bicyclis, Tribulus terrestris and polymers of d-glucosamine and n-acetyl-d-glucosamine.

Alga bicyclis is a macro algae widely distributed along the Pacific coast of central Japan and Korea where, when conditions are suitable, forming extensive underwater meadows (kelp forests), often mixed. The biological properties attributed to these species are instead traced to the presence of particular secondary metabolites also known as the phlorotannins and made the union of various units of the same monomer, the 1,3,5-triidrossi phenol or phloroglucinol. So far a dozen such compounds has been identified, the most important of which are shown in the figures [21-24]. Right now, more than 20,000 new compounds have been isolated from marine organisms; numbers of these naturally occurring derivatives are developed as potential candidates for pharmaceutical applications. Phlorotannins are secondary metabolites distributed in a variety of plants. They are phloroglucin derivatives with a variety of biological functions in vitro and in vivo, such as a strong radical scavenging and antioxidant action [25,26].

Ecklonia cava radical scavenger activity 10-100 powerful than any other polifenol terrestris plants, including green tea catechins, which have only 3-4 fenolic and rings that are commonly considered among the most effective antioxidant molecules. Common polyphenols are soluble in water also and have a relatively short half-life introduced into the body. All phlorotannins had antioxidant properties in vitro, especially, bieckol, dieckol and phlorofucofuroeckol [26] (Figures 1-3).

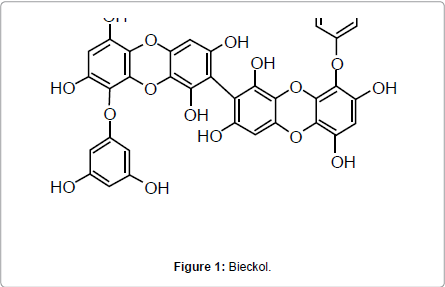

Figure 1: Bieckol.

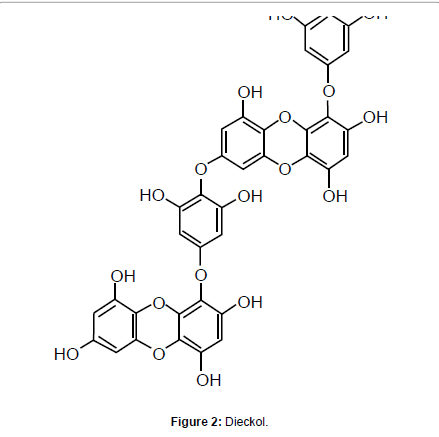

Figure 2: Dieckol.

Figure 3: Phlorofucofuroeckol.

Inflammatory cells might generate and release a number of inflammatory mediators: for example, proinflammatory cytokines and inflammatory cytokines, such as interleukins [27-30], TNF-α [27-30], p53 [31], cytochrome P-450 [27-32] and NADPH-cytochrome P-450 [27-31] causing abnormal metabolism of the hypoxanthine/xanthine oxidase system and the xanthine/xanthine oxidase system, producing many abnormal metabolites [27-33].

These inflammatory cells and reactions might also activate and release a large amount of COX-2 [27-29] transcription NF-k B [27-29] iNOS, and an amount of inflammatory oxidants and other chemokines [27,34,35] and without question, they might induce, generate and release a large number of O₂^- , ·OH, NO and other free radicals, as well as O₂, H₂O₂, and other ROS [27,28,31,33,34]. Excessive free radicals and ROS, as strong oxidants, might affects replication and transcription of mtDNA and results in a decline in mitochondrial function which in turn leads to enhanced ROS production and further damage to mtDNA [36].

In the Ecklonia cava there are molecules that are able to reduce the response inflammatory, partially neutralizing the inflammatory damage caused by ROS and in part by slowing the gaming lipoxygenase and inhibiting the formation of prostaglandin E2, a powerful inflammatory mediator. Jung et al. revealed that dieckol inhibits LPS-induced NO and PGE2 [37] production in a concentration-dependent manner and inhibits inducible iNOS and COX-2 in BV2 microglia without causing [38,39]. Alga ecklonia treatment significantly reduced NF-kB translocation and DNA-binding in LPS-stimulated BV2 microglia [39] and p38 mitogen-activated protein kinases (MAPKs) activation [37].

Phlorotannins suppresses the induction of cytokines by LPS, as well as iNOS and COX-2 expression, by blocking NF-kappaB and MAPK activationas well as reactive oxygen species (ROS) production [39]. These findings provide mechanistic insights into the anti-inflammatory and neuroprotective actions of EC in BV2 microglia [40]. It also significantly reduced the generation of proinflammatory cytokines, such as interleukin (IL)-1β and tumor necrosis factor (TNF)-α.

Kim et al. revealed extracts reduced the concentrations of IL-4 and IL-5 by 66% and 84%, respectively, and resulted in a 73% reduction in the secretion of TNF-α [35].

The second compound contained in the composite used in this therapy is Tribulus terrestris. This plant native of India, but now present in most of North America has a weed Active ingredients: protodioscin. The plant contains also flavonoids, alkaloids and amides, although its properties seem to be completely attribuited to protodioscin (Figure 4).

Figure 4: Protodioscin contained in Tribulus terrestris.

The parts used are the seeds and fruits, and, more generally, the aerial parts of the plant. The protodioscin is a steroidal saponin, which is about 45% of the extract obtained from aerial parts of Tribulus terrestris (Figure 4). The substance is able to increase the endogenous production of testosterone, dihydrotestosterone, a hormone luteinizing hormone (LH), dehydroepiandrosterone (DHEA) and dehydroepiandrosterone sulfate (DHEA-S) [40]. Because of these effects in experimental animals there is an increase in spermatogenesis and the frequency of matches [41]. In the rabbit in particular has been shown that the compound stimulates the release of nitric oxide (NO) by vascular endothelium of the corpora cavernosa thereby having a pro-erectile effect [41]. The mechanism behind this effect appears to involve the pathway of steroid hormones [41]. Although humans protodioscin is used for the treatment of erectile dysfunction [42,43].

A study conducted on 150 italian patients affected by erectile dysfunction treated with the same composite containing Tribulus terrestris, alga Ecklonia bicyclis and polymers of d-glucosamine and n-acetyl-d-glucosamne showed and improvement of 28% of the testosterone levels from a baseline mean value of 5.3 ± 1.1 ng/ml to 6.8 ± 1.6 (p<0.01) post treatment [44].

Polymers of d-glucosamine and n-acetyl-d-glucosamine acts on as a nitric oxide synthetase (NOS) stimulator [44] (Figure 5).

Figure 5: Polymers of d-glucosamine and n-acetyl-d-glucosamine.

Nitric oxide (NO) is a free radical generated from the oxidation of L-arginine to L-citrulline by reduced nicotinamide adenine dinucleotide phosphate (NADPH)-dependent nitric oxide synthase (NOS). Nitric oxide is diffusible, multifunctional, and acts as a transcellular messenger, being implicated in numerous physiologic and pathologic conditions [45].

Nitric oxide, at physiologic concentrations, is relatively nonreactive, but most of its actions are mediated by activation of cyclic guanosine monophosphate production [46]. It is reported that NO modulates sexual and reproductive functions in mammalian species [47,48]. The presence of NO in seminal plasma has been confirmed [49]. The source of NO in seminal plasma may be either male reproductive organs or macrophages [50,51]. The production of NO in human and animal sperm has also been reported [50,51].

Nitric oxide is reported to be a novel mediator of sperm function [52]. It has both positive and negative effects. The positive modulation reflects the role of NO in physiologic processes like sperm capacitation [52] and acrosome reaction [53].

In conclusion, in this study we investigated that the association of an antiestrogen and a natural compound containing antioxidant and androgen-mimetic substances is a valid, safe and effective therapy for treating men with idiophatic oligoasthenozoospermia.

In fact we have demonstrated that the use of this combination significantly improves the number and the motility of sperms. Furthermore there is an improvement of the pregnancy rate comparing with the group taking just tamoxifen citrate and to placebo recipients.

This treatment protocol is inexpensive, safe, and easy to administer.
