Journal of Diabetes & Metabolism

Diabetes affected 171 million people worldwide in 2000; this number is expected to duplicate in 2030, when WHO estimate 366 million cases [1]. These numbers are even more dramatic in developing countries as Africa, Eastern Mediterranean and South-East Asian Regions, where the prevalence is expected to be close to triple in the same timeframe [1], thus becoming a pandemic issue moving from richest countries to worldwide population. A systematic review on the prevalence of diabetes and its complications in Northern Africa found that diabetes prevalence ranged from 2.6% in rural Sudan to 20.0% in urban Egypt and, in general, was significantly higher in urban areas than in rural areas. The same study showed that undiagnosed diabetes ranges from 18% to 75% [2].

The potential risks linked with advanced diabetes, especially when uncontrolled or poorly controlled, are well recognized: only 3.6% of patients achieve the three American Diabetes Association (ADA) recommended targets for blood pressure, LDL cholesterol, and HbA1c in poor countries like Latin America [3]. The prevalence of chronic diabetes complications in North Africa ranged from 8.1% to 41.5% for retinopathy, 21% to 22% for albuminuria, 6.7% to 46.3% for nephropathy and 21.9% to 60% for neuropathy [2].

Advanced complications of diabetes, including diabetic foot ulcer, constitutes a major challenge, especially in low-income countries, and can have a huge impact on patients, families, and society [2].

Improvements in foot ulceration diagnosis and prevention can reduce amputation risk and reduce health care costs [3] but, for example, 6.7% of subjects with diabetes consulted a health care professional for diabetic foot in 2009 in Chile [4].

World Health Organization, WHO, has developed some recommendations, including regular foot inspection and care, to reduce the incidence of diabetic foot ulcers [5], responsible for up to 70% of amputations in adults [4]. Basic diabetes management and care are estimated reducing up to 80% of all diabetic foot amputations [5]. The yearly direct costs of diabetes in the USA were $164 billion in 2007 [6], at least one-third linked with the treatment of diabetic foot ulcers [7].

The appearance of foot ulcers almost always worsens glycaemia because of the infections that are difficult to be controlled [8]. As diabetic wounds are burdened by severe impairment of local microcirculation, they’re linked with an increased risk of infections. Infections let glycaemic control even more difficult than before, in a patient that is, almost always, poorly controlled. A negative loop between ulcer worsening, metabolic worsening, and difficulty of patient’s treatment starts, and can take the patient to foot amputation [9].

If possible, open or endovascular revascularization is attempted. Ulcer debridement defined as the removal of foreign debris and devitalized or contaminated tissues from a wound bed so that the surrounding healthy tissues are exposed [10], is frequently needed; as ulcers often degenerate, periodical debridement have to be performed [9].

Thus, diabetic foot lesions should need a treatment that prevents and, possibly, treat infections while stimulating tissue repair [9].

Hyperoil™ is a mixture of hypericum flowers extract (Hypericum perforatum) and nimh oil (Azadirachta indica) produced by RIMOS S.r.L. Mirandola (MO) - Italy (Medical Device Class IIB CE0476). A case report on the successful use of Hyperoil™ in an elderly patient with advanced bilateral diabetic foot has been recently published [11]. The use of Hyperoil™ in this patient allowed wound home care, when the patient received only a 2 times a week cleaning of the lesions, performed by relatives, without any other surgical or clinical intervention [11]. There were no changes in any other treatment of the patient, while ulcer management paralleled with significant improvements in glycaemic control (HbA1c between seven point six percent and seven point seven percent) [11].

Learning from this experience, where Hyperoil™ seem to be an effective and cheap therapy for advanced diabetic foot ulcers that, for the first time, allow home caring without the intervention of highly specialized personnel and with a significant reduction of surgeries, the use of Hyperoil™ was started on all patients afferent to the Wound Care Units of Pisa, Ragusa and Modena - Italy (WCU) with diabetic ulcers. Results obtained after up to 1 year follow up will be described in this article.

All patients with advanced diabetic foot ulcer [12] afferent to WCU from June 2012 to June 2013 followed the diagnostic/therapeutic scheme described in Figure 1, being the standard management on all patients with diabetic foot lesions followed at WCU from 1993 [13].

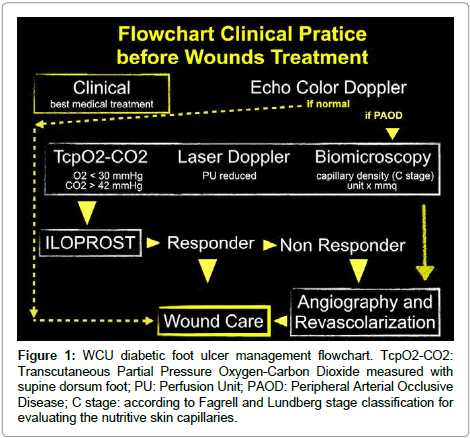

Figure 1: WCU diabetic foot ulcer management flowchart. TcpO2-CO2: Transcutaneous Partial Pressure Oxygen-Carbon Dioxide measured with supine dorsum foot; PU: Perfusion Unit; PAOD: Peripheral Arterial Occlusive Disease; C stage: according to Fagrell and Lundberg stage classification for evaluating the nutritive skin capillaries.

Patients with critical chronic ischemia, having supine big toe pressure (Laser Doppler evaluation)<30 mmHg associated to dorsum foot values O₂<20 mmHg and CO₂>50 mmHg (Transcutaneous Partial Pressure) measured with the lower limb depending [14,15], were not included in this case series.

All patients, first of all, had the best medical treatment according with ADA guidelines for diabetes [16], stroke prevention [17,18], and for their disease or, more commonly, diseases. Then, they all performed echo-colour-Doppler. If the results did not highlight abnormalities, the patient had wound care. If not, transcutaneous oxygen and carbon dioxide partial pressure, laser-Doppler and bio-microscopic evaluations were performed. After these assessments, depending on their results, angiography and revascularization or Iloprost trometamol (Iloprost trometamol 0.067 mg equivalent to iloprost 0.050 mg diluted in 250 ml of normal ringer solution, infused using a pump-syringe for 12-24 hours) treatment were performed according with Leriche-Fointaine clinical classification [19,20], on the same day of first visit. If patients didn’t respond to Endoprost, angiography and revascularization were performed, too. In any case, all patients had wound care.

Hyperoil™ was used on foot ulcers not yet needing surgical procedures. Patients started their treatment with Hyperoil™ in the WCU. Each wound was accurately cleaned-up with physiologic solution before the application of Hyperoil™. Then, the lesion was protected with non-adhesive gauze and accurately bandaged [21]. Dressing was changed every two days. These are very simple and simple to teach procedures, so dressing changes and sequent Hyperoil™ applications were performed at home, usually by nurses or relatives. Patients were asked to attend periodical clinical medical checks (normally every month) in WCU, to assess metabolic status and ulcer’s progression, and to update therapies accordingly.

Clinical and demographic data were collected, including full medical history, on-going treatments, comorbidities (diagnosed on anamnestic analysis), age, smoking habits. Previous treatments for foot ulcers were collected, if appropriate.

All patients were controlled for metabolic parameters with the goal of optimizing glycaemic control, having target HbA1c of 7% and fasting blood glucose between 80 mg/dL and 120 mg/dL, according with ADA guidelines [16].

All patients were asked to evaluate their perceived pain administering Visual Analog Scale for pain (VAS) [22].

Patients continued to be treated with this approach at WCU, but the results obtained in all patients enrolled in the first year were decided to be disclosed because of the consistency of the outcomes. All patients were followed-up until June 2014.

All patients gave their signed informed consent to be included in this case series.

Because of the nature of observed patients and outcome, only descriptive statistic was used to evaluate outcomes. Statistical significance of variations between the beginning of the observation, the lesion recovery and the end of the observation, as the ones on variations between the lesion recovery and the end of the observation, have been evaluated with paired samples t-test performed with Microsoft Excel 2010 for Windows.

A total of 16 (9 males, 7 females) diabetic patients with advanced foot ulcer were observed. Their age ranged between 46 and 78 years and 7 of them were actual smokers. All patients were under antihypertensive therapy (average Systolic Blood Pressure [SBP] 144.8 mmHg; SD 13.8 mmHg; min: 128; max: 170. Average Diastolic Blood Pressure [DBP] 91.1 mmHg; SD 6.6 mmHg; min 82; max: 102), 11 PAOD, 9 ischemic heart failure (IHF), 5 Chronic Kidney Failure (CKF), 3 Chronic Obstructive Pulmonary Disease (COPD) and 1 was HCV positive.

The foot ulceration area varied from 10 to 420 cm². Most of the ulcers were really deep and advanced, having 14 of the 16 patients lesions with bone exposition. All patients received antibiotic therapy at WCU admission administering a rifamycin or specific antibiotics determined after the identification of the infective agent and antibiogram test.

All patients were shifted to intensive insulin therapy when admitted to WCU, using insulin glargine as basal insulin, administered at bedtime, and insulin as part or insulin lispro administered at breakfast, lunch and dinner after checking fasting glycaemic levels to determine the most appropriate dosage according with clinical experience. No changes in dietary habits were prescribed. HbA1c at baseline ranged between 8.8% and 14.0% (average 11.2%; SD 1.7%) (Table 1).

Table 1: HbA1c (%), SBP (mmHg), DBP (mmHg), VAS at baseline, at lesion recovery and at the end of the observation period. SBP: Systolic Blood Pressure; DBP: Diastolic Blood Pressure; SD: Standard Deviation; Min: Minimum; Max: Maximum

The average VAS value was 7.2 (SD 2.5) ranging between 2 and 10 (Table 1). All patients used painkillers as treatment.

All patients performed echo-colour-Doppler, bio-microscopy and transcutaneous oxygen and carbon dioxide partial pressure evaluation. Angiography was also performed on the eight patients not responding to Iloprost trometamol and laser-Doppler fluximetry on 6 nonamputated ones.

These exams permitted to understand foot lesions genesis. Five patients had a neuropathic injury without PAOD (Figure 2A), 4 had a neuropathic injury with PAOD (Figure 2B) while the remaining 7 patients had a distal ischemic injury with PAOD (Figure 2C), being the most difficult and advanced lesions to be approached.

Figure 2: Examples of neuropathic diabetic foot ulcer without PAOD (A): neuropathic diabetic foot ulcer with PAOD (B): and distal ischemic diabetic foot ulcer with PAOD (C): PAOD: Peripheral Arterial Occlusive Disease.

Ten of the all the 16 patients have had a previous minor amputation; the distribution by foot ulcer genesis is described in Table 2.

Table 2: Patient’s distribution by neuropathic foot ulcer genesis and previous minor amputations. PAOD: Peripheral Arterial Occlusive Disease.

All patients had very advanced foot ulcers that, following the usual approach, would need intensive treatments including surgery (in most cases multiple), hospitalizations or, at least, home care performed by a specialist.

All patients were treated with Hyperoil™ only. Eleven of these patients were also treated with Iloprost trometamol after angiography, 4 had a revascularization after angiography and 10 of the 11 patients treated with Iloprost trometamol had also surgical debridement in addition to Hyperoil™ treatment. Two patients with both distal ischemic injury and PAOD had both angiography and the surgical debridement.

All the 16 patients recovered their foot ulcers 2 to 10 months after starting Hyperoil™ treatment. None of the patients was lost to followup. Some examples of recovered lesions are shown in Figure 3.

Figure 3: Examples of foot ulcer recovery.

None of the patients had gangrene progression or new wounds in the observed period, being at 3, 6 and 12 months after ulcer recovery. Only one patient had a local infection that was treated with an additional washing and a daily administration of Hyperoil™.

All patients reported a clinically relevant and statistically significant improvement in HbA1c (Figure 4) when ulcers recovered (Table 1) (average 7.8%; SD 0.7%; p<0.01) when compared to baseline.

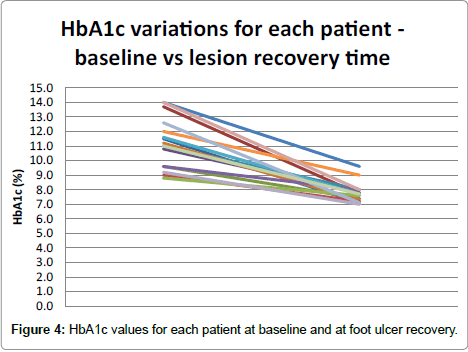

Figure 4: HbA1c values for each patient at baseline and at foot ulcer recovery.

Patients reported an average clinically relevant and statistically significant improvement in SBP (average 135.0 mmHg; SD 7.4 mmHg; p=0.02 vs. baseline) (Figure 5) and DBP (average 84.0 mmHg; SD 6.4 mmHg; p=0.01 vs. baseline) (Figure 6) when ulcers recovered (Table 1), without any change in antihypertensive therapy. Even under tight control, one patient worsened and three remained almost stable, but ulcer recovery was not influenced by pressure unsatisfactory compensation.

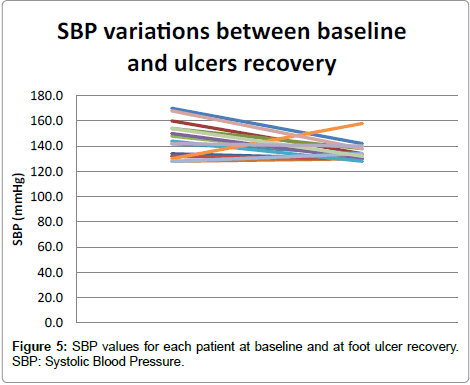

Figure 5: SBP values for each patient at baseline and at foot ulcer recovery. SBP: Systolic Blood Pressure.

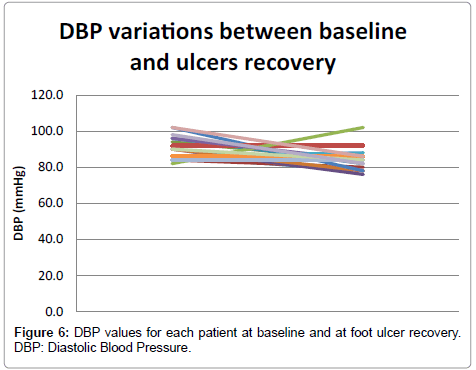

Figure 6: DBP values for each patient at baseline and at foot ulcer recovery. DBP: Diastolic Blood Pressure.

All patients reported no pain on VAS both at ulcer recovery and at the end of the observation period (Figure 7) and none of them used painkillers in this period

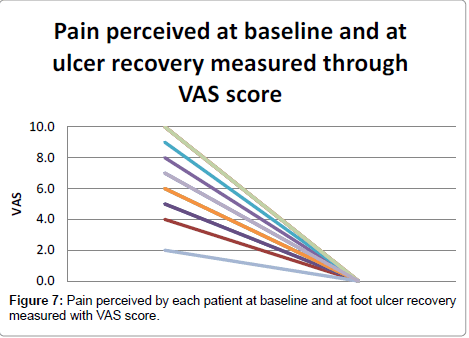

Figure 7: Pain perceived by each patient at baseline and at foot ulcer recovery measured with VAS score.

HbA1c remained stable between ulcers recovery and the end of the observation for each patient as blood pressure, and all patients remained pain free (Table 1). In this period insulin dosage was revised at all control visits; two patients with neuropathic diabetic foot ulcer without PAOD and one of the non-neuropathic patients with PAOD were shifted from insulin therapy to oral antidiabetic therapy with metformin, because of the improved diabetes control. None of

Table 1: HbA1c (%), SBP (mmHg), DBP (mmHg), VAS at baseline, at lesion recovery and at the end of the observation period. SBP: Systolic Blood Pressure; DBP: Diastolic Blood Pressure; SD: Standard Deviation; Min: Minimum; Max: Maximum

The observed case series support the hypothesis that Hyperoil™ might be used at home without the continuous assistance of specialized personnel for the satisfactory management of diabetic foot ulcers.

This was clearly not due to the direct effect of Hyperoil™ but might be linked with the reduction of infections, the improved patient’s surveillance and the increased motivation of these very difficult patients that, after a long period of continuous worsening of their health, experienced some sort of recovery in one of the most impacting of their multiple diseases. Furthermore, as patients were at home, caregivers (mainly relatives) felt more responsible about their role in supporting patients. This could have interrupted the negative feedback cycle linked with the appearance of diabetic foot ulcers, linking diabetes control with ulcers progression and infection. Furthermore, the possibility of managing diabetes wounds at home, instead than hospitalizations needed for surgical treatments of diabetic foot ulcers, should have contributed to treatments compliance and, thus, to general diabetes management.

According with ADA guidelines, the main strategy for the prevention and treatment of diabetic foot ulcers remains an adequate glycaemic control [16]. Several other options have been tested for the treatment of this invalidating complication of diabetes. Nutrition supplementation, including curcumin, L-Arginine, or vitamin E, have not proven a substantial efficacy [23]. The intra-lesional administration of human recombinant epidermal growth factor has shown the presence of complete granulation in 75% of patients after 5 months of treatment and re-epithelisation in 61% of cases after 1.2 years; amputations were needed in 12% of cases [24]. A large cohort study has shown that the use of lipid lowering medications reduces the risk of lower extremity amputations by 35-43% [25]. The use of Hydrogel dressings has been found having significantly greater effect on ulcer healing than larval therapy or platelet-derived growth factors [26] as some other treatments are under evaluation [27-34].

Because of these literature data showing results less satisfactory than the ones we observed while using Hyperoil™, we’re continuing to use Hyperoil™ for the treatment of diabetic foot ulcers in WCU, to understand its possible use in earlier stages of the disease, too.

This case series suggest that using Hyperoil™ for advanced diabetic foot ulcers might be a cheap and effective new option for the management of advanced diabetic foot ulcers.

These preliminary observations need to be scientifically evaluated in well-designed controlled studies where Hyperoil™ has to be compared with available standard treatments.

The author thanks all patients and their relatives for having accepted to be included in this observation and for their consent to publish this case series, as all personnel in WCUs who have supported these patients. The author thanks Andrea Rossi for his friendly support in medical writing, Marzia Lugli and Oscar Maleti for their kind collaboration and ready effectiveness in their vascular surgery centre (Cardiovascular Department, Hesperia Hospital, Modena, Italy).
