The mechanization and the substitution of manual labor that have allowed the use of fossil fuels improve the life conditions. In fact all these advances have led to significant individual and collective benefits, such as the reduction or substitution of arduous manual labor, an increase in lifespan and health, improved educational opportunities, increased income, greater individual freedoms (democracy) [1] mainly in northern countries. It is the fundamental input for the production of goods and services, apart from increasing the well-being of the population, through the provision of thermal comfort, light and leisure, among other benefits [2].

However, much of Africa and particularly the West Africa do not yet know all the well-beings mentioned above and aspire. The little existing power generated is produced using fossil fuels, which emit tons of carbon dioxide and other pollution each second [3]. More the use of fossil fuels is particularly concerning given the scenario of dwindling resources, as highlighted by the International Energy Agency [4], which forecasts that fossil fuel reserves will be exhausted in less than a 100 years from now. Worst, the concerns as to the environmental impact of their processing and use, giver rise to a need to reverse current trajectories [1].

A solution to that issue is the use of new source of energy which can provide sustainable development of countries and cause less harm to the environment. People are looking for new source of substitute clean energy.

Due to growing energy deficit in the Economic Community of West African States (ECOWAS) region, many member states have expressed the necessity to mainstream renewable energy into their national policies [5]. The Regional Initiative for Sustainable Energy (IRED) within the West African Economic and Monetary Union (UEMOA) proposes 78% Renewable Energy penetration by 2030 in the UEMOA electricity system, whereas 62% will be provided by wind, solar and biomass [5]. Considering only solar energy as a sustainable energy solution it is therefore important not only to quantify the present solar resource but to try and anticipate future behaviors of these all planned centralized electricity system provided by solar.

This research objective is to quantify the present solar resource and to examine the future behaviors of these all planned centralized electricity system provided by solar using mainly the technology of the Photovoltaic (PV) tracking systems. The description of sun–tracking methods can be found at the following references [3,6,7]. Compared with flat-plat PV modules the efficiencies of these technologies are more important [8-10]. The main difficulty should come from the high cost of these devices [11] and their maintenance compare with fixed devices.

West Africa is the one of the sunniest areas of the world and solar energy is the only choice that can satisfy the huge and steadily increasing demand of energy [3]. The need to conduct this study is that the availability and reliability of solar sources are a function of climate conditions, which can vary in light of Global Climate Changes (GCC) related to the emission of greenhouse gases [11,12], caused by changes in the transparency of the atmosphere, not by the Sun itself and air pollution is the important contributor [13]. Indeed, Climate change can affect solar energy resources by changing atmospheric water vapour content, cloudiness and cloud characteristics, which affects atmospheric transmissivity [14,15]. This can have effects on electricity generation from PV panels. So, it is therefore important to conduct such study which could highlight all future tendencies of electricity system provided by solar.

Stanton et al. [16] recently present a review of the impacts of climate variability and change on electricity systems in Europe. In this paper they summarize the impacts of climate changes mainly on hydroelectricity and solar electricity for Europe. Concerning the Africa, some authors have studied the impacts of climate changes on horizontal and tilted PV panels. Crook et al. [17] examines global changes in PV and Concentrated Solar Power (CSP) outputs, using two climate change models (HadGEM1 and HadCM3) and the IPCC SRES A1B scenario. They conclude that CSP is more sensitive to climate change than PV and overall solar power from 2010 to 2080 will increase a few percent in Europe and China, stay similar in Algeria and Australia and decrease by a few percent in USA and Saudi Arabia.

Most recent study is from Wild et al. [18]. Wild et al. examine how the latest generation of climate models used for the fifth IPCC report projects potential changes in surface solar radiation over the coming decades, and how this may affect, in combination with the expected greenhouse warming, solar power output from PV systems. They conclude that statistically significant decreases in PV outputs will occur in large parts of the world under the RP C8.5 scenario, but notable exceptions with positive trends in large parts of Europe, southeastern North America and south-eastern China.

Projected changes between 2006 and 2049 under the RCP 8.5 scenario overall are on the order of 1%/decade for horizontal planes, but may be larger for tilted or tracked planes as well as on shorter (decade) timescales. Using the ECHAM5 global climate to assess the near future changes of PV productivity in Europe and Africa, Gaetani et al. [12] found that reductions in aerosols emissions in the near future result in an increase of global warming, and a significant response in surface solar radiation and associated PV energies productivity. A statistically significant reduction in PV energies productivity of up to 7% is observed in Eastern Europe and northern Africa, while a significant increase of up to 10% is observed in Western Europe and the eastern Mediterranean.

All the studies cited above show a diversity of trends, both on a continental scale and in some countries, and this reflects the need to continue to carry out similar studies both at sub-regional level and at lower scales. This explains why the present study is oriented towards West-Africa.

The study area, used data and the methodological approach are described in the next section 2. Section 3 is only reserved to the results. The section 4 presents the concluding remarks and proposed some recommendations for future improvements in this kind of analysis.

Study area

The Figure 1 presents the study area. The first reason which led to study this region is found at ECREEE [5]. Indeed less than half of the 334.6 million ECOWAS citizens have access to electricity services today. The projections show that by 2050, Nigeria will become the third most populous country in the world With an average regional population growth rate of 2.5% and regional economic growth generally projected to accelerate, rising demand for energy and other resources will continue to pose a major challenge in the decades ahead, contributing to the urgent need to improve energy efficiency and deploy renewable energy solutions. Another reason is that the region is one of the sunniest areas of the world. Solar radiation reaching the earth resource to meet the rapidly growing energy demands of the world on a renewable carbon and nuclear–free basis Wild et al. [18]. Direct use of this resource through (PV) energy conversion has become the major contributor to this trend in recent years, reaching an installed capacity of more than 150 GW in 2014 [19].

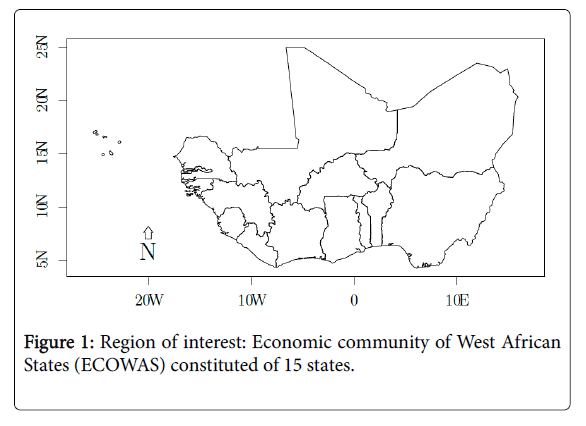

Figure 1: Region of interest: Economic community of West African States (ECOWAS) constituted of 15 states.

A final reason is that the life of the great rural mass population of this area is threatened because heavily dependent on rained agriculture which is degraded by climatic changes. Such results could help to anticipate the future impacts of climate changes on vegetation’s.

Data sources

The Table 1 presents the data used in this study. It is a set of eight climatic models outputs with daily time step and spatial resolution of 0.44° and available at: https://esgf-data.dkrz.de/projects/esgf-dkrz/. Climatic models are complex programs based on atmospheric circulation including its chemistry and radiation, oceanic circulation including its biochemistry, land–surface, river routing and sea ice modeling. The differences between them are mainly related to the physical parameterization of each component of the model structure. The components of the model are based on the scenario or Representative Concentration Pathway (RCP). Within Coupled Model Inter comparison Project Phase 5 (CMIP5), predefined scenarios of radioactive forcing obtained from socio–economic scenarios were used for the projections of climate change [20,21].

Table 1: Used climatic models. Institute of origin (Column 1), global model under which they are run (Column 2) and the short name of regional climate model (Column 3).

On the technical aspects, the data set is the latest of climatic models outputs and they are run under the scenario A2r. This scenario combines assumptions about high population and relatively slow income growth with modest rates of technological change and energy intensity improvements, leading in the long term to high energy demand and greenhouse gases emissions [22]. Details of land use categories such as cultivated land, built up land and forests and grassland area can be found at Schmidhuber and Tubiello [23]. Comparatively to the others scenarios this one represents the highest greenhouse emission. It implies a Representative Concentration Pathway of 8.5 W/m² and projects on average a global warming of 2°C and 3.7°C until the mid and late 21st century respectively relative to a reference period 1985-2005 [23,24]. Finally, the climate of West Africa poses particular problems for climate models among which the unavailability of observations which are used as boundary conditions to correct the forecast data during the simulation. So, many variables like temperature and radiation are purely model products. Furthermore Ayompe and Duffy [25] counted twenty two radiometers sites across the West Africa. So, it is very important to present this kind of study which gives trends of future solar radiation and applications.

The used methods

All the files are on the format Network Common Data (NetCDF). The seasonal averages as well as that annual were calculated using the Climate Data Commands (CDO 2015: Available at: http://www.mpimet.mpg.de/cdo). Then, the free software R [26] is used to compute all the statistical parameters such as the slopes, minimum and maximum and all the plots presented in the following.

The performance of PV modules is maximum when the sun light reaches 90° angle with its surface [27] and depends on azimuth and solar altitude angles. One and two axes PV system is designed to meet this condition. To compute the yearly sum of irradiation which reaches the surface of thesis two of types tracking, the free package solar [28] is used. More details and examples on this method can be found at Antonanzas et al. [29].

The equation 1 [18,30] allowed to assess the influence of temperature on tracking systems performance.

(1)

Where T the air ambient temperature in °C, C₁, C₂ and C₃ depend of the material properties and in this case (mono-crystalline silicon cells) their values are C₁=-3.75, C₂=1.14 and C₃=0.0175m²W^-1, β=0.0045 and γ=0.1 and Gtot is the total irradiation which reaches the system surface.

Inter annual trends in seasonal solar radiation

The calculation of the trend in rsds was done into two parts. The first part is based over the period 2006–2100. The Figure 2 presents the results of the trends for each season and by country. The examination of this figure shows that the trends are null or negative accepted of the trends of period JJA for the countries like Burkina Faso, Guinea– Bissau, Nigeria, Senegal, Togo, Benin and Gambia. For the positive trends, the maximum is 0.05 W.m^-2 year^-1 for Gambia.

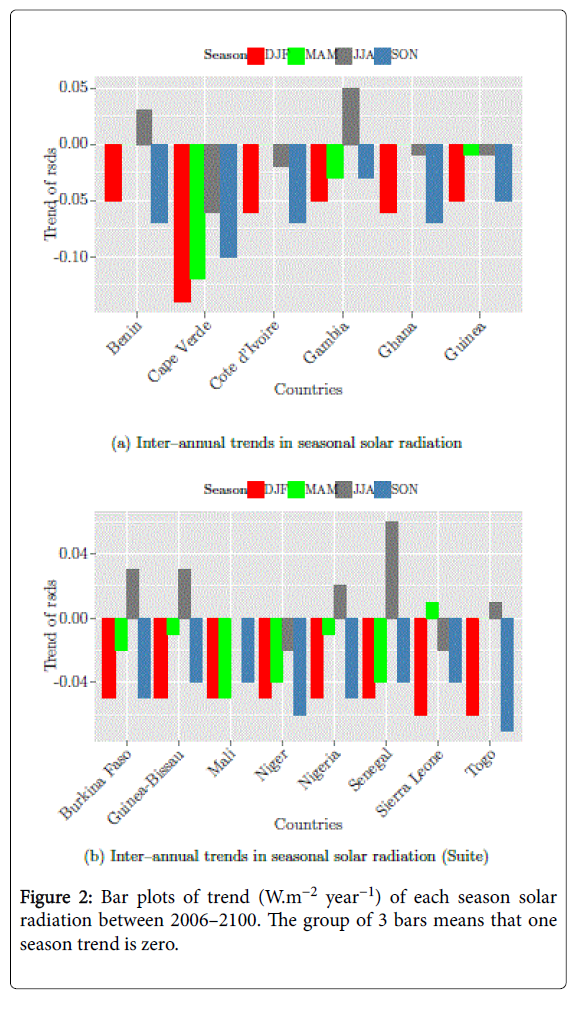

Figure 2: Bar plots of trend (W.m⁻² year⁻¹) of each season solar radiation between 2006–2100. The group of 3 bars means that one season trend is zero.

Concerning the null trends, no change is planned for season JJA in Mali and season MAM in Togo, Benin, Cote d'Ivoire and Ghana. For the negative changes, strongest is 0.15 W.m² year^-1 and corresponds to the season DJF for the Cape Verde. In a general way, the trends of season MAM are weakest of negative trends accepted the case of Niger, Sierra Leone and the Cape Verde where it is season JJA. Guinea and Gambia present trends which are equal for respectively the periods MAM, SON and MAM, JJA.

The second part consists in determining the trends of the seasons between the near future 2006-2050 and far future 2051–2100. This decomposition makes possible to notice more characteristics which can be masked by the long size of the series 2006–2100. The results of periods 2006–2050 are present in the Table 2.

Table 2: Minimum and maximum of trend (W.m^-2 year^-1) per Country and for each season between 2006-2050.

Compared to the periods 2006–2100, all the trends are more marked. These trends also evolve between positive and negative values. The strongest negative trend is of 0.36 W.m^-2 year^-1 for the period SON and the Cape Verde. The maximum ones of the trends for period JJA are all positive except the Cape Verde which presents a downward trend of −0.05 W.m^-2 year^-1.

Compared to the period 2006–2051, the results of the trends seasonal of 2051–2100 present at the Table 3 are marked for certain countries and less for others. The common point is that the Cape Verde always presents the trends weakest of 0.55 W.m^-2 year^-1 for the minimum of season JJA. The maximum ones as of period JJA which was all positive except for case of the Cape Verde are positive for the countries like Benin, Gambia, Nigeria, Senegal and Togo and worthless for Burkina Faso and Guinea–Bissau.

Table 3: Minimum and maximum of trend (W.m^-2 year^-1) per country and for each season between 2051-2100.

The weakest trends were left again between the minimal ones of seasons JJA and SON (Figure 3).

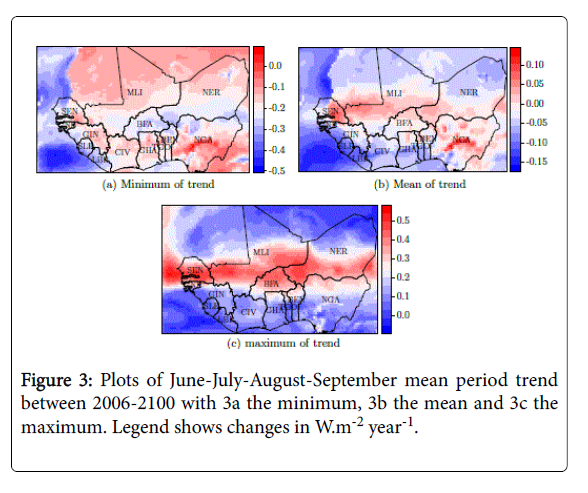

Figure 3: Plots of June-July-August-September mean period trend between 2006-2100 with 3a the minimum, 3b the mean and 3c the maximum. Legend shows changes in W.m^-2 year^-1.

Case of June-July-August-September (JJAS) period

The Figure 4 presents spatial of the trend between 2006-2100 of the solar irradiation for season JJAS.

The interest to study this period (JJAS) is that during this period falls almost all the rains of the region [31], and the population primarily rural are very vulnerable because of their strong dependence on rain agriculture. So this study complete the one of whose deal with the projected precipitation for the same period and region [32]. Considering the Figure 3b, the median trends strongest seem made up a horizontal band which goes from Senegal, passing by Mali, north of Burkina Faso, the south of Niger to go down over all the Nigeria. This same band is noticed on the level of the Figure 3c which presents the greatest values of the trend.

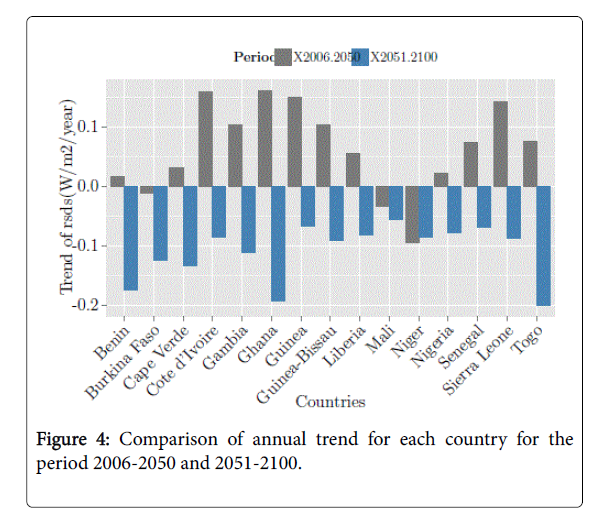

Figure 4: Comparison of annual trend for each country for the period 2006-2050 and 2051-2100.

However on the level of the Figure 3c the band is more horizontal. The countries in the south of the area share the same cases of the downward trends.

Impact of climate changes on one and two PV tracking

The results of this section are based on the changes of power outputs without the influences of others factors like temperature, wind and rain. The fractional changes ΔP/P is calculated for both PV system with one axis rotation Figure 5 and two rotation axes 6.

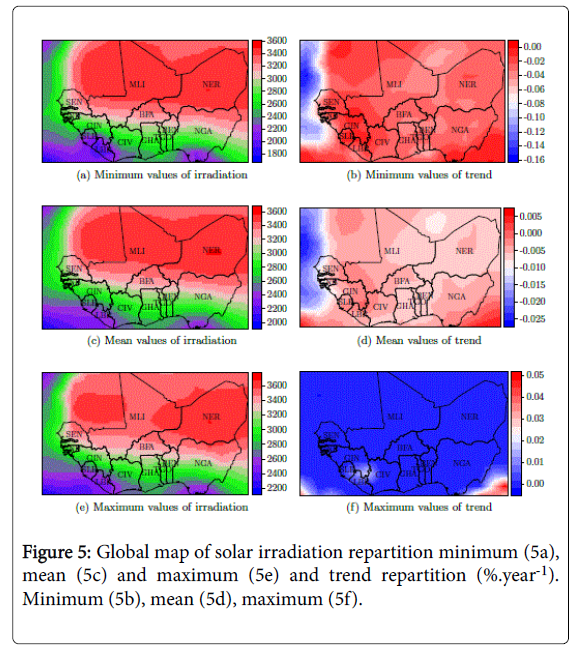

Figure 5: Global map of solar irradiation repartition minimum (5a), mean (5c) and maximum (5e) and trend repartition (%.year^-1). Minimum (5b), mean (5d), maximum (5f).

Figures 5b, 5d and 5f present respectively the minimum, mean and maximum of percentage changes in PV with one axis rotation from 2006 to 2045 relatively to the period 2006–2015. PV output is likely to decrease for the whole region. Higher latitudes which present higher values of solar irradiation (5a, 5c, 5e) do not present the same trends on the percentage changes. Like Figures 5 and 6 shows the results concerning the PV system with two rotation axes. Compare with one rotation axis, no significant differences are observed between percentage changes in power outputs of these two types of PV technologies. These situations is more accurate in the results presented in the Table 4 which shows the statistics by country does not allowed to make an absolute comparison on the future behaviors of these two technologies.

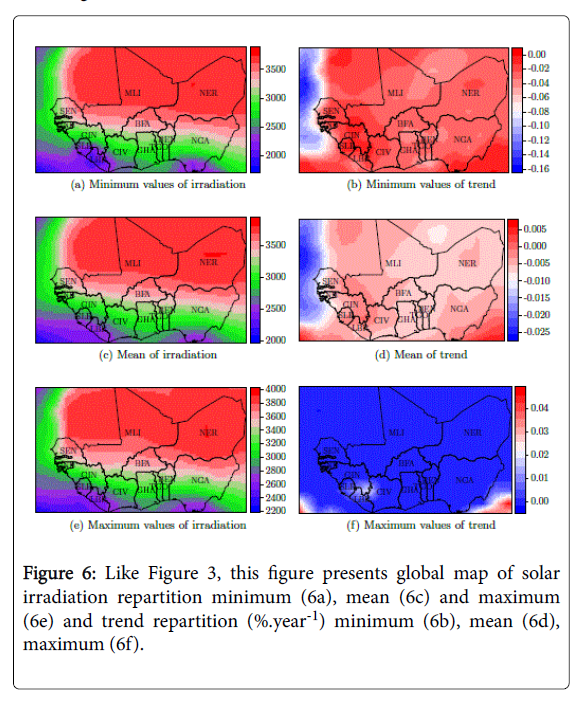

Figure 6: Like Figure 3, this figure presents global map of solar irradiation repartition minimum (6a), mean (6c) and maximum (6e) and trend repartition (%.year^-1) minimum (6b), mean (6d), maximum (6f).

Table 4: Minimum and maximum of trend (%.year −1 ) between 2006–2045 per country considering the two types of PV technologies.

Influence of temperature

On opposite to the previous section (3.3) the results presented in this one take in count the impact of temperature using the equation 1.

Figure 7a, 7c and 7e shows the results for one axis tracking, while Figure 7b, 7d and 7f shows the ones of two axes tracking. The percentage changes are more marked on the system with two axes tracking than those of one axis tracking. Both figures illustrate that the long term trend project a slight decreasing change in PV energy output during the first middle of the 21st century. It is important to remark that in the changes is larger concerning the system with two tracking axes than those with one tracking axis.

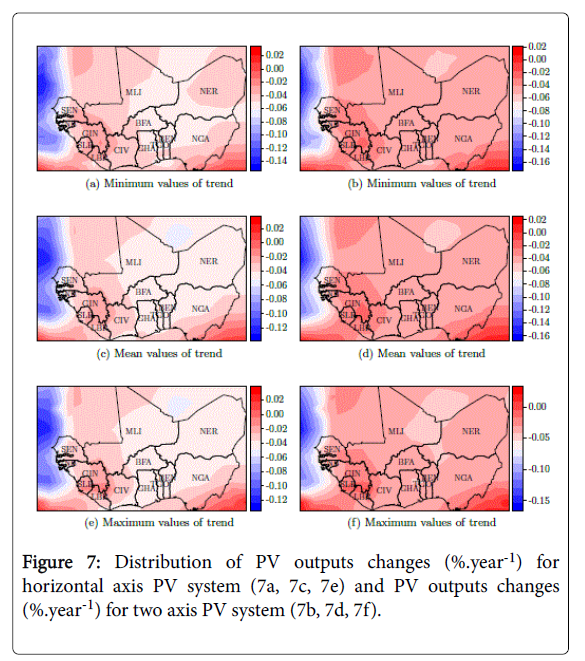

Figure 7: Distribution of PV outputs changes (%.year^-1) for horizontal axis PV system (7a, 7c, 7e) and PV outputs changes (%.year^-1) for two axis PV system (7b, 7d, 7f).

The median values indicate a slight variation of the output power which is about -1%/decade for the countries like Benin, Ghana, Guinea–Bissau, Togo and Burkina Faso. The largest decreases trends strongest go from -3% respectively to -8%/decade for the systems with axes of traction for the Sierra Leone and the Coˆte d’Ivoire respectively and from -2 to -8%/decade for the systems with two axes of tractions for the Sierra Leone and the Coˆte d'Ivoire. In way general the trends vary between 3 and 5%/decade except the case of Senegal where values reach up to 8%/decade.

This paper objective are to study the seasonal variations of the rsds on the one hand and to determine the future annual changes of the outputs powers for motorized systems (one and two axes of rotation). West Africa is the region of interest and data are the latest projections of climate change (RCP 8.5).

The seasonal changes shown in Figure 2 and Table 2 indicate a decreasing trend for all seasons and for the entire region. The seasonal results have the same trends as those found by Dimitri et al. [33] but that concerned the annual trends. To have better comprehension of results of in this paper it is important to look at the results of other regions for the same dataset. Wild et al. [18] found increasing trends in annual rsds for western and Eastern Europe, southwestern China. The reason for this situation can be found in the fact that most part of the countries in this part of the world has adopted major’s policies in electricity, transport, cooling and hotting which involve the use of renewable energies. Which in the long term reduce the emissions of greenhouse gases? Meanwhile, although policies are oriented towards renewable energies with the creation of supra-national institutions like the Ecowas Center for Renewable Energy Efficiency (ECREE) and often ministries devoted to renewable energies, practical actions are slow to come.

Another analysis but which does not return within the framework of this study could concern impacts of decreasing reduction in the rsds on the environment in particular the plants in term of photosynthesis.

Although motorized PV systems offer higher efficiencies than fixed PV systems, the results presented in Figure 7 show decreasing trends higher than fixed PV systems. These results are in agreement with those of Wild et al. [18] Faced with a population that is expected to increase by more than 150% by 2050 [34], the development of other sources of renewable energies could fill the shortfall.

Forecasting the AC power output of a PV plant accurately is important both for plant owners and electric system operators [35]. More in this tendency of renewable energies which depend on the climate variables, more details on the future behaviors of PV plants are important. In this paper, the seasonal trends of solar resources and the changes of power output using the one and two tracking axes have been explored. The results show that for trends from 2006–2100 the maximum is of 0.05 W.m⁻² year⁻¹ for Gambia and over the period JJA while the changes strongest negative change 0.15 W.m⁻² year⁻¹ and corresponds has season DJF with the Cape Verde. Compared with the periods 2006–2100, all the trends the period 2006–2050 and 2051– 2100 are more marked. Compared to the period 2006–2051, the results of the trends seasonal of the period 2051–2100 are marked for certain countries and less for others. Cape Verde always presents the trends weakest of 0.55 W.m⁻² year⁻¹ for the minimum of season JJA. Concerning future changes of power output, largest decreases trends strongest go from -3% respectively to -8%/decade for the systems with axis of traction for the Sierra Leone and the Coˆte d’Ivoire respectively and from -2 to -8%/decade for the systems with two axes of tractions for the Sierra Leone and the Cote d'Ivoire

The northern part of this study area is well known to be marked by the harmattan, a dry wind blowing from the Sahara on the West Africa and cause a serious deposit of dust on the PV panel surfaces. In Further study we the effects of the dust on PV systems efficiencies could be explored. More like mentioned at the end of the section 2.2 many climate data are purely model products. This situation prevents a rigorous description of solar irradiation compare with on ground data. Moreover these data are still highly uncertain with respect to the future evolution of greenhouse gas emissions, greenhouse gas concentrations in the atmosphere and GCC [36]. So a further line of reflection could first be focused on the comparison between the modelled data and on ground data by using the CM–SAF data [37] and a second study be focused on the comparison of the different influences of the other RCP on the outputs of PV systems.

The authors gratefully acknowledge the German Academic Exchange Service (DAAD) for financially supporting this research work.
