Working Memory (WM) is a system of short-term information processing and storage involving the essential cognitive function of everyday life like thought, learning, and communication. WM involves three primary processes: encoding information, actively maintaining this information “on-line” in memory, and finally, using the information to guide behavior [1]. The model of WM most commonly used is the tripartite model of Baddeley and Hitch [2] which consists of three components: central administrator, phonological loop and visuo-spatial sketchpad (a fourth component: episodic buffer was later added to this model in 2000 [3]). In this study, the phonological loop and the visuo-spatial sketchpad were of particular interest and several tasks for assessing each domain in children have been established. The phonological loop or verbal WM has a role in language acquisition and has been shown to be important in learning new words and language [4] and the ability to hear and repeat an unfamiliar pseudoword in children [5]. The visuo-spatial sketchpad or nonverbal WM is responsible for maintaining the visual and spatial information as well as in the formation and manipulation of mental images [6].

Medulloblastomas, the most common primitive malignant tumors in children, are mainly located in cerebellum and classically treated by a combination of surgery, radiotherapy and/or chemotherapy [7]. Many factors affect the progressive intellectual reduction in survivors including: hydrocephalus, high radiation dose, large volume radiation and complementary chemotherapy, radiation vasculopathy and also young age at the time of treatment [8,9]. To improve quality-of-life outcomes, an assessment of WM in children undergoing treatment is important to prevent and limit cognitive impairment.

Functional MRI has become the main method to study brain function in healthy subjects and patients, especially in cognitive neuroscience. This method allows a better understanding of the neurophysiological bases of behavior in the pediatric population and has many advantages, most importantly being noninvasive. WM is considered as emerging from the interaction of the higher functions of sensory, attentional and memory components involving their specific brain regions. fMRI has been applied to better understand the role of these brain regions in WM but has not been much used to study the functions of the cerebellum.

The cerebellum accounts only 10% the of total brain volume, but it contains about 80% of all neurons in the human brain [10] and it has an essential role in the central nervous system. The cerebellum has been traditionally considered to play a role in motor control, physical coordination and balance, but more recently it has been also considered to contribute to cognitive, emotional and language processing [11-13]. However, the role of the cerebellum in the visuo-spatial sketchpad has rarely been described. The number of medulloblastoma survivors has been increased by treatment advances and as a consequence they require more the rehabilitation. The objective of this study was to investigate the cerebellar contribution in WM disorders in children who had been treated for medulloblastoma by combining an anatomical and functional MRI study.

Participants

The neuropsychological and imaging data of healthy children volunteers (5 boys, 4 girls, mean of age 11.1y (SD = 2.2y)) was compared with patients with cerebellar medulloblastoma (5 boys, mean of age 12.3y (SD = 0.7y)) treated with surgery and radiotherapy (5/5), +/- chemotherapy (3/5) in Grenoble, Lyon and St-Etienne pediatric oncology hospital units at least 6 months after the end of treatment. The handedness was determined by means of Delattolas laterality test [14]. The study has been approved by the local SUD EST V Ethic Committee and by the DGS (National Health Authorities). All of the children’s parents/legal guardians provided written informed consent.

Inclusion criteria

The participants satisfied the conditions shown in Table 1.

Table 1: inclusion criteria of participants for recent study.

Neurologic assessment

An onco pediatrician or neuro pediatrician at the participating centers carried out a clinical examination, including neurologic testing, on all patients and volunteers.

Neuropsychological assessment

The patients and controls were evaluated by a neuropsychological assessment protocol. It included an assessment of intellectual efficiency as well as an evaluation of memory and attentional functions by the tests that have been calibrated in a French population of the same age.

The overall assessment includes Wechsler Intelligence Scale for Children -WISC IV [15], laterality, Children’s Memory Scale -CMS (history and location, immediate and delayed) [16], Grober and Buschke procedure [17], A Alboy working memory test, Rey’s figure [18] and TMT (Trail Making Test) [19]. These tasks (including resting phase) lasted about 4 hours per subject and were performed a maximum of two months before the fMRI.

Imaging

Task and stimuli: The participants were instructed to perform four classical n-back tasks (1-back tasks) using two modalities of presentation (visual vs. auditory) and two methods of displayed information (verbal vs. non-verbal). Four experimental tasks were tested: Auditory Verbal Task (AUVE), Auditory Non-Verbal (AUNV), Visual Verbal (VIVE) and Visual Non-Verbal (VINV). Each task was presented once during the experimental paradigm. The tasks included 28 stimuli, pseudorandomly presented. Visual tasks: each stimulus (word or spatial pattern) was centered on the middle of a black screen. Words were controlled in terms of frequency (high frequency) and were written in “Courier New” font, size 48 and spatial patterns were 2° size. All visual stimuli were displayed on a computer monitor by using the E-prime software (E-prime Psychology Software Tools Inc., Pittsburgh, USA). The monitor was connected to a video-projector (Epson EMP 8200) permitting the transmission of visual stimuli into the magnet. The subject was able to visualize the stimuli by means of a projection screen situated behind the magnet and a mirror centered above the participant’s eyes. Auditory conditions: (word or sound). The stimulus presentation time was 2000 ms, with 3000 ms fixation point between items. All auditory stimuli were displayed by means of MR CONFON (https://www.mr-confon.de/en/products.html) headphones. The participants were instructed to give manual instead of vocal responses, in order to avoid movement artifacts generated by articulation. The responses were generated by means of one key. Participants were required to respond when the current stimulus was identical to the previous. The manual responses were recorded, analyzed and the task performance evaluated according to the conditions (visual vs. auditory and verbal vs. non-verbal).

MR acquisition

The experiment was performed on a 1.5 T MR scanner (Philips) with 30 mT/m gradient strength and a standard Philips head coil.

Functional image acquisition: fMRI scanning was performed with a gradient-echo/T2* weighted EPI method. Thirty-two adjacent axial slices parallel to the bi-commissural plane were acquired in interleaved mode. Slice thickness was 4 mm. The voxel size was 4×4×4 mm; 256 mm field of view. The main sequence parameters were: TR=5 s, TE=50 ms, flip angle=77°, 56 dynamics. Images were acquired during the 3 first seconds of each TR, 2 extant seconds for auditory and visual cues exposure. A “block” design was used during the fMRI session. Four runs were measured during the fMRI session corresponding to each task. Tasks were randomly presented across subjects. The total duration of each run was 4 min 40 seconds. During each run, the whole brain volume was measured 56 times and the field map obtained was subsequently used during data processing.

Anatomical image acquisition: Finally, a T1-weighted highresolution three-dimensional anatomical volume was acquired using a 3D gradient echo inversion recovery sequence (field of view=256 mm; resolution: 1×1×1 mm; 128 axial spiral slices).

Data analysis

Spatial pre-processing: Data analysis was performed using the general linear model as implemented in SPM8 (Welcome Department of Imaging Neuroscience, London, UK, www.fil.ion.ucl.ac.uk/spm) where each event is modeled using a hemodynamic function model. Data analysis started with several spatial pre-processing steps. All volumes were realigned to correct head motion using rigid body transformations. After discarding the four first slices for the scanner to reach equilibrium, the first volume of the first fMRI session was taken as a reference volume (i.e. this volume was originally the fifth volume). Weighted anatomical volume was co-registered to mean images created by the realignment procedure and was normalized to the MNI space using a trilinear interpolation. The anatomical normalization parameters were subsequently used for the normalization of functional volumes. Finally, each functional volume was smoothed by an 8-mm FWHM (Full Width at Half Maximum) Gaussian kernel to ameliorate differences in inter subject localization. The time series for each voxel were high-pass filtered (1/128 Hz cutoff) to remove low-frequency noise and signal drift.

Statistical analysis: For each fMRI session, two experimental conditions were defined: Rest (R) and n-back Task (T). These conditions were modeled as two regressors and convolved with the canonical form of the Hemodynamic Response Function (HRF).

A statistical analysis was performed at an individual level for each fMRI session corresponding to each task (VIVE, VINV, AUVE and AUNV). The general linear model was used to generate the parameter estimates of activity at each voxel, for each condition, and each participant (healthy and pathological participants). Moreover, as additional factors, movement parameters derived from the realignment corrections (3 translations and 3 rotations) were also taken into account in the design matrix. Subsequently, [T-R] contrasts were calculated for each task and participant. The modality of presentation (visual, auditory) and the nature of information (verbal, non-verbal) in the four experimental conditions: VIVE, VINV, AUVE and AUNV were defined and a flexible design analysis on the contrast images derived from individual analyses in healthy participants was performed. Subsequently, two types of main effects were calculated:

Main effect of modality of presentation: The contrast [AU (VE+NV) vs. VI (VE+NV)] was calculated in order to identify modality specific activations in healthy children. The opposite contrast [VI (Ve+NV) vs. AU (Ve+NV)] was also calculated.

Main effect of nature of information: The contrast [VE (AU+VI) vs. NV (AU+VI)] was calculated in order to explore the cerebral regions required in WM processing according to the nature of information and similar calculation for the opposite contrast [NV (AU+VI) vs. VE (AU+VI)].

The anatomical location of the activated regions revealed by the main effects was determined by using the xj view toolbox (https://www.alivelearn.net/xjview8/) allowing visualization of anatomical, Brodmann areas and MNI coordinates of the activations. In addition, the Spatially Unbiased Atlas Template (SUIT) [20] was used to view cerebellar topography with BOLD activations.

Anatomical data analysis: The Spatially Unbiased Atlas Template (SUIT) of the cerebellum and brainstem [20] for the SPM segmentation method and the MRI Atlas of the Human Cerebellum [21]were used to localize individual cerebellar lesions and to overlap these lesions onto the normal cerebellar template obtained in the control group. The same method was used for localizing the activation patterns from the SPM method within the cerebellum which were visualized using MRIcroGL software (https://www.cabiatl.com/mricrogl/).

The variables did not have a Gaussian distribution and they were not all parametric, therefore, the Mann-Whitney U test was chosen for analyzing neuropsychological and behavioral data.

9 patients and 12 healthy controls were entered into the study. Of these 4 patients and 3 healthy controls were excluded because of: excessive movement (n=3), left-handedness (n=1), anxiety (n=2), lack of task performance (n=1), leaving 9 healthy children volunteers (5 boys, 4 girls, mean of age 11.1y (SD = 2.2y) and 5 patients (5 boys, mean of age 12.1y (SD = 0.6y) suitable for analysis.

Neuropsychological results

Weschler intelligence scale (IQ): In the control and patient group, the Weschler (VCI and PRI) neuropsychological tests showed normal scores for age and no difference between two groups in the perceptual reasoning index (PRI) (U=16.5, Z=1.41 p=0.16, Mann-Whitney U test). However, in the Verbal Comprehension Index (VCI), the patient group performance score (93.5 12.03) was significantly lower than the control group (110.4 ± 8.73) (U=5, Z= 2.65, p=0.007, Mann-Whitney U test).

Working memory test: In the tests related to the phonological loop, there was no significant difference in performance score between the control group and the patient group. However, in the Compound Stimulus Visual Information task (CSVI) involving the visuospatial sketchpad, there was a significant difference in pattern test with the patient group performance significantly lower than the control group (U=11, Z=2, p=0.04, Mann-Whitney U test).

Behavioral results: The accuracy and Reaction Time (RT) were calculated for each participant and for the 4 tasks (VIVE, VINV, AUVE and AUNV). All subjects responded with high accuracy for each task (more than 90 %). The Mann-Whitney U test showed a significant difference for two condition VINV (U=3343, Z= -2, p= 0.04) and AUNV (U=3327, Z= -2, p= 0.04) which means that the reaction time to perform the nonverbal task in the patient group was significantly longer than in the control group.

Anatomical and functional MRI results in the patient group: The cerebellar lesion topography for 5 patients is shown in Figure 1. In the patient group, all 4 patients with principal resected lesions in left inferior cerebellar lobe (lobule VIIB/VIII and Crus I/II) had WM impairment. The only patient with no WM deficit had an inferior vermis resection and no surgery in the left inferior cerebellar lobe. For each task and contrast, the activations maps showed a reduction of cluster size in the patients group vs. healthy children group (Figure 1).

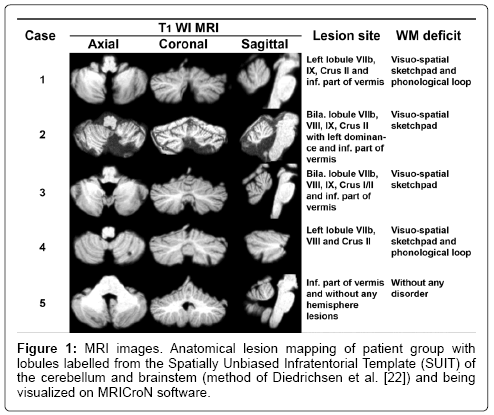

Figure 1: MRI images. Anatomical lesion mapping of patient group with lobules labelled from the Spatially Unbiased Infratentorial Template (SUIT) of the cerebellum and brainstem (method of Diedrichsen et al. [22]) and being visualized on MRICroN software.

Functional MRI results in the healthy control group: A BOLD signal in the cerebellum and brain for each task (VIVE, VINV, AUVE and AUNV) was obtained for four contrasts (visual vs. auditory, auditory vs. visual, verbal vs. nonverbal and nonverbal vs. verbal) from data processing by SPM8.

BOLD activation patterns within the cerebellum: Analyzing the contrast for both the effects of presentation modality and nature of information, it was found that the visual vs. auditory contrast exhibited greater activations in the left posterior cerebellar lobe (lobules VIIb, VIII, Crus I) and other regions. In the nonverbal vs. verbal contrast, robust activations in lobule VI, VIIb, Crus I/II occurred (Figure 2).

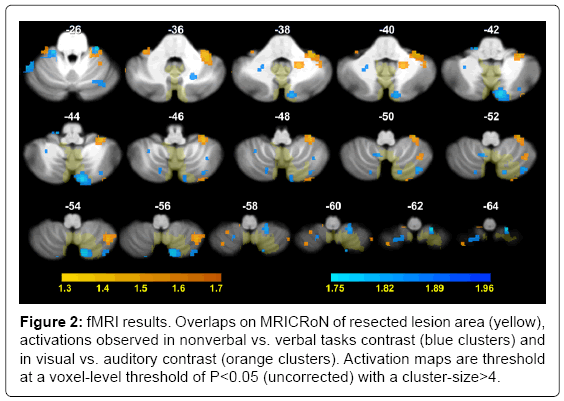

Figure 2: fMRI results. Overlaps on MRICRoN of resected lesion area (yellow), activations observed in nonverbal vs. verbal tasks contrast (blue clusters) and in visual vs. auditory contrast (orange clusters). Activation maps are threshold at a voxel-level threshold of P<0.05 (uncorrected) with a cluster-size>4.

BOLD activation patterns within the brain

Visual verbal tasks (VIVE) and Visual non-verbal tasks (VINV): BOLD activations were concentrated mainly in the parietal-frontal region during the VIVE tasks and the VINV tasks. During the two tasks, stronger activations were found bilaterally in the Inferior Frontal Gyrus (IFG) (BA45/47), Middle Frontal Gyrus (MFG) (BA46), Inferior Parietal Lobule (IPL) (BA40) and the fusiform gyrus (BA17/18).

Auditory verbal tasks (AUVE) and Auditory non-verbal tasks (AUNV): These two presentations activated some robust clusters in the bilateral temporo-frontal regions, particular in the Superior Temporal Gyrus (STG) (BA 21/22), IFG (BA 47) and IPL (BA 40). These activations predominated on the left side for AUVE tasks and on the right side for AUNV tasks. They were greater during AUNV tasks than during AUVE tasks.

Main effect of modality of presentation(visual /auditory): Compared to auditory tasks, visual tasks produced greater BOLD signals in the bilateral parieto-occipital areas (BA17/18/19), especially the bilateral primary visual cortex, bilateral superior and inferior frontal gyrus, bilateral fusiform gyrus and left MFG (Table 2). On the other hand, auditory vs. visual contrast produced prominent activations in bilateral parieto-temporal areas, especially the bilateral primary auditory cortex (BA41/42), Wernicke’s area (BA22) as well as bilateral STG (BA21/22).

Table 2: Examples of tasks during which cerebellar activation is reported in literature and the location of the activation patterns within the cerebellum.

Main effect of nature of information (verbal/ non-verbal): Compared to nonverbal tasks, common activations by verbal tasks were bilaterally observed in the MTG (BA 21/22), supramarginal gyrus (BA 40) with left-sided predominance whereas nonverbal vs. verbal contrast activated predominately the right middle occipital gyrus (BA18/19), right fusiform gyrus and right lingual gyrus (BA17).

The cerebellum was assumed to have an important role in WM disorders in children undergoing surgery for cerebellar medulloblastoma. In this study, children who had surgery for their cerebellar lesions had WM impairment, especially in the visuo-spatial memory or nonverbal WM. This anatomical and functional imaging study was performed to better understand the cerebellar involvement in working memory disorders in children treated for medulloblastoma.

The cerebellum plays an important role in working memory

The cognitive function of the cerebellum is now much better understood and several recent studies have found evidence of the cerebellar role in cognitive function [23-27], including auditory processing [28], phonological loop [27,29,30] and visuospatial sketchpad [31]. However, the specific contributions of different cerebellar regions to the different phases of WM have not been clearly defined and it may differ depending on the demands of the WM tasks [30].

In this study, using neuropsychological tests and behavior results, the four patients with the main lesions located in the left posterior cerebellar hemisphere lobe (lobule VIIb, VIII, IX and Crus I/II) and inferior part of vermis had significant impairment of visuo-spatial WM compared to healthy subjects. Furthermore, the only patient without any lesion of the posterior cerebellar hemisphere did not have any WM deficit, even though this patient had received radiotherapy and chemotherapy doses like others patients. In the healthy subject group, greater neuronal activations were shown in the left posterior cerebellar hemisphere for visual vs. auditory contrast and nonverbal vs. verbal contrast. This suggests that left posterior cerebellar damage may induce visuo-spatial problems. These finding were comparable with other results in the literature. For example, Schmahmann and Sherman [32] found that cerebellar cognitive affective syndrome with visuospatial disorganization and impaired visuospatial memory was seen in patients with posterior cerebellar lobe lesion. Hokkanen et al. [33] found that patients with left cerebellar lesion performed slowly in a visuospatial task and Wallesch and Horn [34] reported that an excision of the left cerebellar hemisphere tumors evoked visual spatial deficits. On other hand, this study demonstrated the left-right lateralization of cerebellum in verbal and nonverbal WM. The verbal WM activated predominantly the right posterior cerebellar lobe while the nonverbal WM activated the opposite side of the cerebellum [35-38]. This is summarized in Table 2.

The results of this study differ from some published results because of the different methods used in evaluating the patient’s WM. For example, Kirschen et al. [26] stated that damage to left hemispheral lobule VIII was associated with reduced digit span to auditory stimuli and phonological storage (phonological loop component), but they used verbal tasks (including only a series of words) to evaluate the verbal WM in patients with cerebellar damage. Ravizza et al. [42] showed that lesions of the right cerebellar hemisphere would be more disruptive to verbal WM than lesions of the left cerebellar hemisphere (but in elderly patients). On the other hand, Hautzel et al. [39] provided evidence of cognitive involvement of the cerebellum in WM but didn’t find the cerebellar lateralization for different WM components.

BOLD activations in brain

Modality of visual and auditory presentation: The results of this study provide strong evidence that visual tasks activated bilaterally the occipital cortex, IFG (BA45/47), IPL (BA40) and fusiform gyrus. These outcomes demonstrate the role of the occipital cortex in visual ability and were also found in previous studies [27,43]. Common clusters in the lingual gyrus, fusiform gyrus, superior and IPL were found with a slight predominance on the right side; the bilateral cuneus, precuneus and MFG with a slight predominance on the right side. These findings were similar to those of other studies [44,45].

During the auditory presentation, bilateral STG, the region classically known as the primary auditory area was activated and that is consistent with other studies [46,47]. Furthermore, the STG is involved in many critical functions in hearing, speech, language and in the integration of auditory and visual cues [48]. Thus, the visual n-back tasks elicited greater activation in occipital regions, whereas the auditory tasks did the same in the STG. This was confirmed by Rodriguez-Jimenez et al. [49]. The auditory stimuli also activated the IFG which plays an important role in cognitive function [50], semantic WM [51], language processing [52], auditory processing [46], both visual and auditory WM [27].

Overall, the fronto-parietal cortex, especially the IPL (BA40) and the IFG (BA45/47), plays an important role in WM, in which auditory WM predominates in the STG and visual WM mainly activates the occipital cortex.Nature of verbal and nonverbal information: The verbal presentation predominated on the left side hemisphere whereas the nonverbal presentation predominated on the right side of brain. This result demonstrates a left-right lateralization in the verbal and nonverbal WM, which agrees well with results of other studies [46,47,53-55]. The activations during nonverbal stimuli were greater than those during verbal stimuli reflecting possibly an increased difficulty in identifying nonverbal compared to verbal tasks. This was consistent with behaviour results which revealed slower reaction times and lower accuracies for the non-verbal conditions vs. the verbal conditions.

Both verbal and nonverbal tasks activated the middle temporal gyrus (BA 21/22) suggesting a role for this region in language reception and processing. This region is involved in verbal and non-verbal semantic cognition [56]. The activations were found bilaterally in the Lateral Prefrontal Cortex (LPFC) (including the BA44 and BA40) during two tasks with predominance in verbal stimuli presentation, suggesting an important role of the DLPFC in verbal WM [53,57-59]. D’Esposito et al. [58] showed in more detail that the dorsal prefrontal cortex was involved in spatial WM and the ventral prefrontal cortex involved in the verbal WM. In an animal study, Goldman-Rakic [60] found the lateral prefrontal cortex and the middle frontal gyrus (BA 46) to be responsible for the phonological loop and the ventral inferior frontal gyrus (BA 44/45/47) to be in charge of the visuospatial sketchpad. The visuo-spatial sketchpad is activated in the right inferior parietal lobule [61] and bilateral posterior parietal regions with righthemispheric dominance [62]. Taken together, these finding revealed that each task evoked some specific zones in the cerebellum and the brain reinforcing the existence of the cerebro-cerebellar circuit in WM function as described in the literature [25,27,63].

In this study, the effects of cerebellar irradiation were not evaluated but in the literature, some studies on irradiation and chemotherapy effects in patients with brain lesion (acute lymphoblastic leukemia [64], cerebellar tumors [31], medulloblastoma [65]) have demonstrated a correlation between these effects and WM deficit. A linear reduction of signal BOLD in the primary visual cortex was also found in the patient group compared to the healthy children group [66]. Thus, patients with posterior fossa malignant tumors can acquire damage in the central nervous system from the tumor’s growth, per-surgical resection of the tumors, the effects of chemotherapy and radiotherapy, or from a combination of any of these factors [67]. WM disorders in medulloblastoma survivors can result from a combination of many factors but in this study, we demonstrated the importance of cerebellar damage after surgery. Due to ethical constraints, the assessment of WM disorders used by each specific factor difficult to perform. There habilitation for these patients there for also needs to take account of all possible risk factors.

In summary, the present study provides further evidence that the cerebellum plays a role in WM in children similar to that already described for adults. Damage to the left posterior cerebellar lobe may impair nonverbal WM performance and children with cerebellar lesions should routinely undergo long-term monitoring of their intellectual development. Secondly, these results reinforce the existence of functional cerebro-cerebellar networks during WM tasks.

Limitations of the present study included: (i) low statistical power of the results because of the difficulty of inclusion (rare diseases), difficulties in performing neuropsychological tests and fMRI acquisitions (multiple exclusion criteria) and limited power of MRI machine (1.5 T); (ii) it was difficult to distinguish the surgery effects from those of radiotherapy because of the absence of a “surgery alone group”; (iii) 1-back tasks, although easier perform, (low WM load) may not be the most effective to evaluate WM performance.

This work was supported by grants from French Society for Childhood Cancer (SFCE) and the Hospital Clinical Research Program (PHRC) of France.
