The fabrication of any extra oral maxillofacial prosthesis presents the prosthodontist with several phenomenal challenges. Foremost among them is the flawless recreation of the same anatomic form that was present preoperatively. The Challenge of recreating preoperative anatomic contour is sometimes complicated by the absence of a preoperative record. This is common when the loss is congenital or unexpected as with the loss of human ear. In these conditions the preoperative bilaterally symmetry can be recreated using mirror image modeling. The present article attempts to review different techniques reported in literature for mirror image modeling in the fabrication of auricular Prosthesis where preoperative records are not available.

Conventional technique

Conventionally if pre-operative casts are not available. The prosthesis can be sculpted from the beginning. Taking into consideration the complex anatomy of the ear this procedure is laborious, time consuming and totally depends on the artistic skill of the operator. This task is facilitated by sectioning cast of the normal side into equal divisions so that contours are more easily verified [1].

Alternately the donor technique can be employed. This is an easier technique. A relative/family member with ear contours that closely match with that of the patient is selected. Impression of ear is obtained and wax cast is retrieved. The wax cast is adapted and re-contoured as necessary. Image editing software such as Adobe Photoshop can be used to obtain mirror image of normal ear; this image can be used as an aid in contouring the wax pattern for the prosthesis (Figure 1).

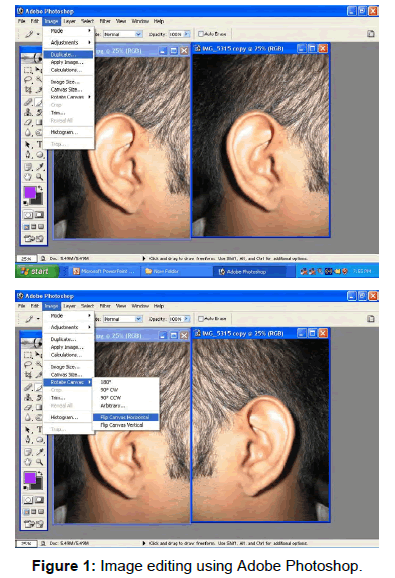

Figure 1: Image editing using Adobe Photoshop.

Shaper/Tracer: A mirror image pantograph can be used to obtain cast of the opposite ear. The machine uses a metal shaper activated by hand which consists of arm bearing cutting and tracing tools which move in opposite directions as the master cast is moved in horizontal plane. The machine contains hand activated metal shaper. The machine consists of two articulated arms with tracing or cutting tools which move in an opposing or parallel direction as the master model is traversed in the horizontal plane [2].

The photocopy technique: The photocopy technique of obtaining sculpted cast by overlapping color slides. A Photocopy of the cast of the normal ear is acquired using a transparent sheet. This sheet is pasted on to a glass plate. The glass plate is inverted and superimposed on to the cast of the defective side and is used as an aid in molding the wax pattern.

Non-contact 3-Dimensional (3-D) models of the facial region are made possible with advances in the digital imaging technology. The various steps involved in the fabrication of such prosthesis are:

1. Acquisition of 3-D data using scanning.

2. Generation of blue print of the defect area.

3. Obtaining a prototype.

Computerized tomography (CT) scanning: CT scan acquires data by recording in slices which can be used to reconstruct anatomical structures or fabricate prosthesis with accuracy and details. The wide spread use of CT scan also casts a shadow on the application as it may expose the patient to high radiation dosage.

Techniques to obtain 3-dimensional (3-D) models using data obtained from CT scan and milled using polyurethane blocks to obtain ideal soft tissue models for waxing have been developed in recent times [3].

Magnetic Resonance Imaging (MRI): This proves a viable alternative as the exposure to radiation is substantially reduced in this imaging technique. The disadvantage being its application in situations with many metallic restorations leading to scattering and artifact formation. One another disadvantage being the necessity of patient to remain still during the entire length of procedure.

3-D laser scanning system: Laser scanning has the disadvantage of inability to record the details in the undercut areas as the laser can be directed only vertically. Such problems are corrected with the advent of 3-D laser scanning technique [4].

A technique of obtaining a scan from cast of existing ear using 3-D laser scanner, creating a mirror image of the scan to obtain a rapid prototype model of the deficient side using resin material. A 3D laser scanner develops an integrated 3D digital image of the unaffected ear, which is copied and then mirrored. A rapid prototyping machine collects the necessary data to manufacture the definitive resin ear [5,6].

Steps in laser scanning:

• Acquisition of “emodel” (3-D dental cast) using laser scanning.

• Utilizing color pins to guide the location of the cast.

• Positioning cast in 8 different locations to record the undercut areas.

• Over one million points are recorded to obtain scan of the cast which are used to generate emodel software data.

• Produce 3-D mirror image of the cast (Figure 2).

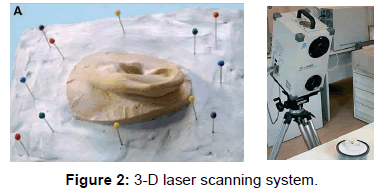

Figure 2: 3-D laser scanning system.

Computer Numerically Controlled (CNC) milling: This encompasses data acquisition using laser scanning and software to collect data to form reverse of the normal ear. This data is fed into a cutter which mills blocks of polytetraflouroethylene into the desired shape. The disadvantages being inability to mill the areas which are in an undercut that are not recorded by the scanner, a maxillofacial technician then has to modify the contours to obtain the desired shape. The disadvantage of inability in reproducing undercut areas can be overcome by techniques like rapid prototyping [7].

Rapid prototyping: It forms the mold of desired shape by deposition of material into layers rather than by milling from a single block which has an added advantage of reproduction of undercuts and finer details, such details were not possible with previous generation of equipments. This also adds to the merits of reduction in the wastage of material as the material is layered in the designated areas minimizing the wastage [8,9] (Figure 3).

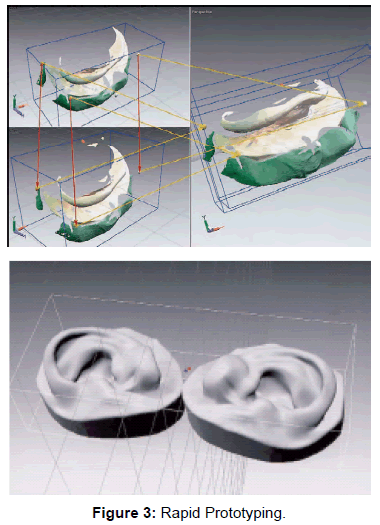

Figure 3: Rapid Prototyping.

Stereolithography: This method generally uses UV (Ultraviolet) light to cure resin to form a desired shape. The currently available variants of this technique in the market allows to create a model with thickness to as less as 0.5 mm. They can use UV light to cure resin, fuse layers of metal/resin and can laminate thin sheets to obtain the desired shape [10].

Prosthesis made by CAD/CAM techniques are better than those fabricated by conventional methods. But unfortunately taking into account the complexity and the high cost of the equipment needed, these techniques can only be used in well developed establishments and an academic institution which makes us rely on more conventional techniques for the fabrication of extra-oral maxillofacial prosthesis.
