Antioxidants, particularly those which are capable to prevent the effects of free radicals in the human body and deterioration of food products are gaining interest among the industries and researchers. Especially, antioxidants from natural sources, rather than from synthetic sources [1] are gaining popularity. This increasing interest on using them is complimented by the increased use of analytical methods for the estimation of anti-oxidant efficiency of such substances [2,3].

One of the most popular methods is based on the use of a stable free radical diphenyl picrylhydrazyl (DPPH). The purpose of this paper is to examine the basis of this method and to further use the parameter “EC₅₀” (equivalent concentration to give 50% effect) which is currently used in the experimental data interpretation.

It should be duly noted by the readers that the current paper neither correlates the results of the DPPH method to the anti-oxidant activity of the substance nor with the anti-oxidant efficiency and life-style enhancing capabilities of these substances in normal usage [3,4]. Users should use discretion while considering the anti-oxidant capabilities of the said materials.

The 1,1-diphenyl-2-picrylhydrazyl(α,α-diphenyl-β-picrylhydrazyl; DPPH:1) molecule is considered as a very stable free radical. The delocalization of spare electron over the molecule keeps the molecules from dimerization, while most other free radicals lack this unique feature. The delocalization also gives rise to a deep violet color, characterized by an absorption band in ethanol solution centered at about 517 nm.

A solution of DPPH when mixed with a hydrogen donor substance, a reduced form (2) of the DPPH is formed, which can be indicated by the loss of violet color. A residual pale-yellow color from the picryl group can still be present in the reaction mixture.

Representing the DPPH radical by Z and the donor molecule by AH, the primary reaction is

Z+AH=ZH+A (1)

Where ZH is the reduced form and A is free radical produced in this first step. The free radical obtained will then undergo further reactions which controls the overall stoichiometry, that is, the number of molecules of DPPH reduced (decolorized) by one molecule of the reductant.

The reaction (1) is therefore intended to represent the reactions taking place in an oxidizing system, such as the autoxidation of a lipid or other unsaturated substance. The DPPH molecule Z represents the free radicals formed in the system whose activity is to be suppressed by the substance AH.

The DPPH method stated here was introduced by Marsden Blois, working at Stanford University, about half a century back [5]. He used the thiol-containing amino acid cysteine as his model antioxidant.

Representing the DPPH radical by Z and the cysteine molecule by RSH, the initial reaction is then

Z+RSH=ZH+RS (2)

The free radical RS reacts with another molecule of the same kind that was produced by a parallel reaction to (2).

RS+RS=RS SR (3)

The reaction here results in the reduction of two molecules of DPPH by two molecules of cysteine, that is, a 1:1 stoichiometry. In another case, if the molecule has two adjacent sites for hydrogen abstraction connected internally, as like ascorbic acid (Vitamin C), then there may be a further hydrogen abstraction reaction after the first one:

HO OHHO O•

| | | |

Z•+R−C=C−R'=ZH+R−C=C−R' [4]

HO O• O O

| | || ||

Z•+R−C=C−R'=ZH+R−C−C−R' [5]

This leads to a 2:1 stoichiometry, that is, two molecules of DPPH reduced by one molecule of ascorbic acid. Another example is the reaction of DPPH with hydroquinone (1,4 dihydoxybenzene) that produces quinone (1,4-benzoquinone) by a similar two-step mechanism.

The other compounds stated in the paper to be actively participating in this reaction are glutathione, aromatic amines (such as p-phenylene diamine and p-aminophenol), and α-tocopherol (Vitamin E-2:1 stoichiometry) and polyhydroxy aromatic compounds (such as hydroquinone and pyrogallol), whereas monohydric phenols (such as tyrosine), simple sugars (such as glucose), purines and pyrimidines do not react at all. Proteins get precipitated if subjected to this reaction. It was also noted that “inorganic ions in lower valence states may of course interfere and must be eliminated or determined separately” which presumably applies most importantly to ferrous iron [5].

In the original paper, the presented “typical calibration curve” seems to be slightly different from the original experimental data, since the absorbance values (there called by the previous name, “optical density”) are round number values (0.6 down to 0.2), which have been calculated evidently. Even the graph was not extended for the line to meet the axis, as would be expected to give the end-point for the titration. The end-point would correspond to 2.3 × 10^-7 moles (230 nanomoles) of this substrate (cysteine hydrochloride) if the line was extended to meet the x-axis. The titration if continued beyond the end point is shown in idealized form in Figure 1. Any residual yellow color from the reduced form, or of any absorbance contribution from the added sample itself were not accounted for in this graph.

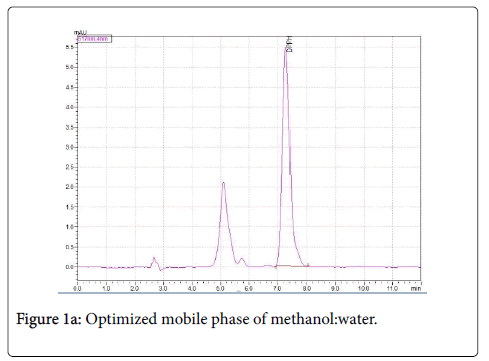

Figure 1a: Optimized mobile phase of methanol:water.

It is clear that the stated method is a constant-volume colorimetric titration, with complications being a slow reaction process (with mixtures to be allowed to stand for 30 minutes before the absorbance measurement).

The original Blois method has been followed by several recent users [6,7]. The relatively newer method of Brand-Williams et al. has been used by some others as a reference [8-11]. This more recent work indicates that the method suggested by Blois is somewhat over simplified, and that because of the complexity of the reactions that follow the initial one (Equation 1), the overall stoichiometry need not necessarily be a whole number (integer) such as 1 or 2. Furthermore, the initial step (Equation 1) may be reversible, which can be demonstrated by adding the reduced form ZH at the end of the reaction [12]. Nevertheless, the Blois picture remains a useful one, and the original paper should be read by anyone proposing to use the DPPH method.

Brand-Williams et al. has introduced the parameter “Efficient concentration” or EC₅₀ value (otherwise called the IC₅₀ value) recently to interpret the results of DPPH method [8,12]. This is defined as the concentration of substrate that causes 50% loss of the DPPH activity (color). EC₅₀ parameter has been used subsequently by several groups of users for presenting their results [6,10,13-16].

In practice, it is the “EC₁₀₀” value that we are concerned with, which corresponds to the endpoint of the titration. It should be noted that in all these cases, any residual (yellow) color from the reduced form or any non-specific absorbance from the sample has to be taken into account in defining the “endpoint” of the titration, or the “50%” point.

Another drawback of the EC₅₀ parameter is that the higher the antioxidant activity, the lower is the value of EC₅₀. This is a disadvantage particularly when results are presented graphically as a bar chart [16] even if the same data is available in numerical form [15].

Herbal based cosmetics are rapidly becoming popular in recent years as an alternative to the synthetic cosmetics. Several polyherbal formulations, which are combinations of different fruit juices/extracts, were traditionally used for the treatment of various skin diseases. Antioxidants being capable of protecting the skin from oxidative damages are included in polyherbal formulations. For developing a satisfactory herbal based cosmetic formulation, there is a need to evaluate the formulation for desired properties such as antioxidant and anti-inflammatory activity. The final polyherbal formulations containing different plants, fruits /extracts must be tested again in the formulation form [17] to determine their efficacy. Hence, a simple and sensitive analytical method is required for evaluating the antioxidant activity as a means of polyherbal formulations. 1,1-diphenyl-2- picrylhydrazyl (DPPH) is a stable free radical is used for the evaluation of the general radical scavenging capabilities of various antioxidants [18]. DPPH with an odd electron delocalized over the molecule shows a strong absorption band at 517 nm in methanol. The scavenging of free radical by antioxidants is achieved by donating Hydrogen to form the stable DPPH-H molecule. The absorbance then decreases because of color change from purple to yellow due to the said reason [19]. The spectrophotometric estimation of DPPH is simple but is not applicable to colored foods due to interference by pigments [20]. Also, the DPPH spectrophotometric method of evaluation may not be of much use to judge the antioxidant activity, as it is not capable to indicate the antioxidant activity of drugs such as nimesulide, dapsone and acetylsalicylic acid etc. [20-22]. Few workers developed DPPH-HPLC method and compared the antioxidant activities of known standard antioxidants and commercial beverages with that of spectrophotometric method. The applicability of HPLC method was extended to determine the antioxidant activity of crude plant extracts/ fruit juice and drugs [21,23,24].

The objective of the present study is to develop, standardize and compare the DPPH-HPLC method with that of spectrophotometric method using known antioxidants, and to evaluate its application to determine the antioxidant activity of selected berry fruit juice freeze dry powder as a means of rapid screening methodology.

Materials

DPPH (90%) and L-Ascorbic acid were obtained from sigma Aldrich. Mango, Pomegranate, Sweet lemon, Jamun, Acai berry, Goji berry, Black berry and Maqui berry fruit juice freeze dry powders were produced inhouse. HPLC grade Methanol was procured from Finar chemicals and HPLC grade water was produced in house from Elga water purifier.

Sample preparation

The DPPH and L-Ascorbic acid standard antioxidants were soluble in methanol. Fresh DPPH stock solution (200 millimoles) was prepared prior to the analysis. The stock solutions of ascorbic acid were prepared in methanol at a concentration of 100 micro moles and stored at 25°C. Samples were prepared by weighing accurately 1.0 gm of fruit juice freeze dry powder in 250 ml round bottom flask and 100 ml methanol was added. The flask was refluxed on water bath at 80 ± 5°C for 30 minutes, cooled to room temperature and then transferred to 100 ml volumetric flask. A portion of the sample was filtered through 0.45 μ Nylon syringe filter prior to HPLC injection.

Spectrophotometry analysis

Preparation of DPPH: The DPPH and L-Ascorbic acid standard antioxidants were soluble in ethanol. Fresh DPPH stock solution (0.2 mg/ml) was prepared on each day of analysis.

Preparation of ascorbic acid: The stock solutions of ascorbic acid were prepared in ethanol at a concentration of 0.1 mg/ml and stored at 25°C.

Sample preparation: Accurately 1.0 gm of fruit juice freeze dry powder was weighed into a 250 ml round bottom flask and added 100 ml methanol, refluxed on water bath 80 ± 5°C for 30 minutes, cooled to room temperature and transferred to a 100 ml volumetric flask. A portion of the sample was filtered through 0.45 μ Nylon syringe filter prior to HPLC injection.

Procedure-standard ascorbic acid: 9 separate 5 mL volumetric flasks were taken and aliquots of 0.2 ml, 0.4 ml, 0.6 ml, 0.8 ml, 1.0 ml, 1.2 ml, 1.6 ml, 1.8 ml and 2.0 ml of 0.1 mg/ml solution of ascorbic acid standard (antioxidant) were added respectively to separate volumetric flasks. 0.5 ml of 0.2 mg/ml solution of DPPH was added to each of the mentioned 9 volumetric flasks. Volume was made up to the mark with ethanol, and the flasks were shaken vigorously and allowed to stand at room temperature, protected from light for 30 minutes. Absorbance was measured immediately at 520 nm by UV spectrophotometer and experiment was done in triplicate. The IC₅₀ value of the standard, which is the concentration of the standard required to inhibit 50% of the DPPH free radical was calculated using log dose inhibition curve. Lower absorbance of the reaction mixture indicated higher free radical activity. The percentage of DPPH scavenging effect was calculated by following equation.

DPPH scavenging effect (%)/% Inhibition=A₀-A₁/A₀ × 100

Where A₀=The absorbance of control.

A₁=The absorbance of standard.

Procedure-berry fruit juice freeze dry powder: 9 separate 5 mL volumetric flasks were taken and aliquots of 0.1 ml, 0.5 ml, 1.0 ml, 1.5 ml, 2.0 ml, 2.5 ml, 3.0 ml, 4.0 ml and 4.5 ml of 1.0% of sample were added respectively to separate volumetric flasks. 0.5 ml of 0.2 mg/ml of DPPH was added to each of the mentioned 9 volumetric flasks. Volume was made up to the mark with ethanol, the flasks was shaken vigorously and allowed stand at room temperature, protected from light for 30 minutes. Absorbance was measured immediately at 520 nm by using UV spectrophotometer and experiment was done in triplicate. The IC₅₀ value of the standard, which is the concentration of the standard required to inhibit 50% of the DPPH free radical was calculated using log dose inhibition curve. Lower absorbance of the reaction mixture indicated higher free radical activity. The percentage of DPPH scavenging effect was calculated by following equation.

DPPH scavenging effect (%)/% Inhibition=A₀-A₁/A₀ × 100

Where A₀=The absorbance of control.

A₁=The absorbance of standard.

HPLC analysis

Chemical/Reagents details: HPLC grade Methanol.

Reference standard: Ascorbic acid (Sigma Aldrich).

Glassware’s details: 100 ml and 5 ml volumetric flasks, 10 μl, to 1000 μl Micro pipettes.

Apparatus:

Instrument: HPLC-LC-2030C 3D (Shimadzu-Prominence-I) or any other equivalent.

Chromatographic conditions:

Column: C18 (Phenomenex Luna-C18 Column)

Length: 250 mm

Diameter id: 4.6 mm

Column oven temperature: 25°C

Detector: PDA

Wave length: 517 nm

Mobile phase (A:B): Purified Water : Methanol (20:80)

Injection volume: 20 μl

Flow rate: 1 ml/minute

Cooler temperature: 15°C

Purge time: 10 Minute

Diluent: Methanol (HPLC grade or any equivalent).

Retention time: 7.23 Minutes

Total run time: 12.0 Minutes.

Preparation of DPPH: The DPPH and L-Ascorbic acid standard antioxidants were soluble in ethanol. Fresh DPPH stock solution (200 micro moles) was prepared on each day of analysis.

Preparation of ascorbic acid: The stock solution of ascorbic acid was prepared in ethanol at a concentration of 100 micro moles and stored at 25°C.

Sample preparation: Accurately 1.0 gm of fruit juice freeze dry powder was weighed in to 250 ml round bottom flask and 100 ml methanol was added, refluxed on water bath at 80 ± 5°C for 30 minutes, cooled to room temperature and transferred to a 100 ml volumetric flask. A portion of the sample was filtered through 0.45 μ Nylon syringe filter prior to HPLC injection.

Procedure-standard ascorbic acid: 9 separate 5 mL volumetric flasks were taken and aliquots of 100 μl, 200 μl, 300 μl, 400 μl, 500 μl, 600 μl, 700 μl, 800 μl, 900 μl, and 1000 μl of 100 micromoles solution of ascorbic acid were added respectively to separate volumetric flasks. 1000 μl of 200 micromoles of DPPH solution was added to each of the 9 volumetric flasks and the volume was made up to the mark with ethanol. The flasks were shaken vigorously and allowed to stand at room temperature, protected from light for 30 minutes. A portion of the sample was filtered through 0.2 μ Nylon syringe filter prior to HPLC injection.

System suitability procedure: Injected the diluent as blank till a stable baseline was achieved. Injected the standard and again injected the blank to check the carryover.

Standard was injected 6 times and the % RSD for standard area was checked.

Relative standard deviation (%RSD): NMT 5.0%

Theoretical plates : NLT 2000

Tailing factor: NMT 2.0

Sample analysis was continued once the stated system suitability parameters were achieved.

Procedure for standard analysis: Standard was injected in triplicate into the HPLC. After completion of the analysis, standard peaks were integrated and the average standard area of 3 injections was calculated and considered for calculation. The IC₅₀ value of the standard, which is the concentration of the standard required to inhibit 50% of the DPPH free radical was calculated using log dose inhibition curve. Lower absorbance of the reaction mixture indicated higher free radical activity. The percentage of DPPH scavenging effect was calculated by following equation.

DPPH scavenging effect (%)/% Inhibition=A₀-A₁/A₀ × 100

Where A₀=The absorbance of control.

A₁=The absorbance of standard.

Procedure-berry fruit juice freeze dry powder: 9 separate 5 mL volumetric flasks were taken and aliquots of 25 μl, 50 μl, 75 μl, 100 μl, 125 μl, 150 μ, 175 μl, 200 μl, 225 μl and 250 μl of 1.0% of sample were added respectively to separate volumetric flasks. 250 μl of 200 micromoles of DPPH solution was added to each of the 9 volumetric flasks and the volume was made up to the mark with ethanol. The flasks were shaken vigorously and allowed to stand at room temperature, protected from light for 30 minutes. A portion of the sample was filtered through 0.2 μ Nylon syringe filter prior to HPLC injection.

Immediately the sample was injected in triplicate into the HPLC. After completion of the analysis, sample peaks were integrated and the average sample area of 3 injections was calculated and considered for calculation. The IC₅₀ value of the sample, which is the concentration of the sample required to inhibit 50% of the DPPH free radical was calculated using log dose inhibition curve. Lower absorbance of the reaction mixture indicated higher free radical activity. The percentage of DPPH scavenging effect was calculated by following equation.

DPPH scavenging effect (%)/% Inhibition=A₀-A₁/A₀ × 100

Where A₀=The absorbance of control.

A₁=The absorbance of sample.

Optimization of mobile phase

As DPPH was soluble in methanol, it was taken up as organic phase. HPLC mobile phase was extensively optimized to achieve good peak shape of DPPH. With the optimized mobile phase ratio of 80:20 :: Methanol:Water the RT of DPPH was found to be at 7.23 min. The peak was well separated with no interferences and acceptable tailing (NMT 2.0) as shown in Figure 1a (DPPH final concentration 200 micromoles). The method was specific for DPPH with no interferences and acceptable tailing (NMT 2.0) and theoretical plates (NLT 2000) as shown in Figure 1b (Ascorbic acid final concentration 100 micromoles). Total run time of 12 min was selected to flush out any sample matrices if present and to avoid carryover to the next runs.

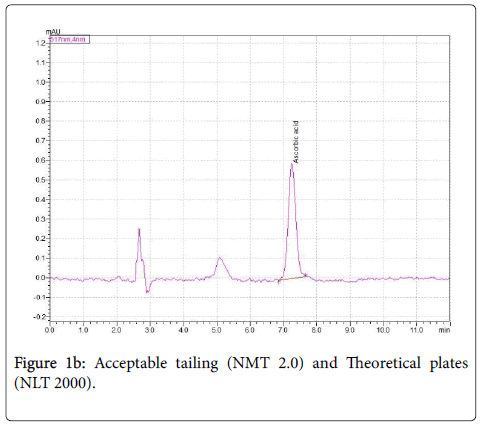

Figure 1b: Acceptable tailing (NMT 2.0) and Theoretical plates (NLT 2000).

Repeatability and reproducibility

The repeatability and reproducibility of the analytical method was confirmed from the peak area and retention times of the DPPH blank and ascorbic acid solution. The results as listed in Table 1, indicated good repeatability and precision with acceptable R.S.D (<2%).

Table 1: Repeatability and reproducibility of the peak area of DPPH blank and ascorbic acid solution (n=6) by HPLC.

Linearity graphs of standard antioxidants (spectrophotometry v/s HPLC)

The linearity graphs of all standard antioxidants were constructed by taking the mean value of the triplicate analysis. The linearity of ascorbic acid by spectrophotometry was found to be in the concentration range of 0.2 ml to 2.0 ml (correlation coefficient, r²=0.998) Figure 2a, and The linearity of ascorbic acid by HPLC was found to be in the concentration range of 25 μl to 250 μl (correlation coefficient, r²=0.989) Figure 2b, suggesting that ascorbic acid can be used as standard for comparison of DPPH free radical scavenging activity (Figure 1b). Linear regression equations for all other standard antioxidants also indicated good correlation in the linearity range of 25 μl to 250 μl (Table 2).

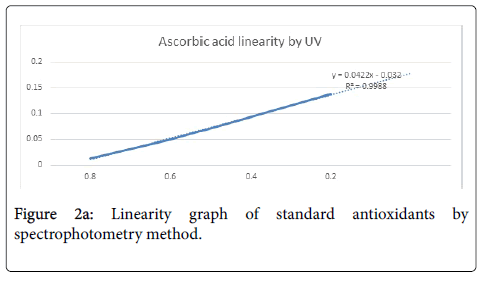

Figure 2a: Linearity graph of standard antioxidants by spectrophotometry method.

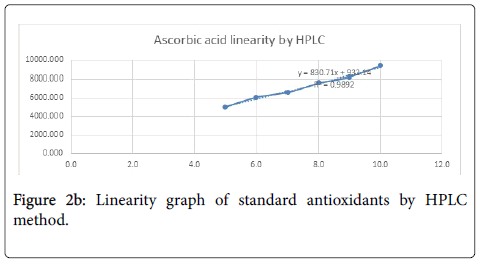

Figure 2b: Linearity graph of standard antioxidants by HPLC method.

Table 2: IR data of the pure compound (1).

Determination of IC₅₀ values

The 50% radical scavenging activity (IC₅₀) of the standard antioxidants and Berry fruit juice freeze dry powder is given in Table 3. Based on the IC₅₀ values calculated from the linearity curves of various antioxidants, each mole of ascorbic acid, trapped approximately 100 micromoles and 200 micromoles of DPPH, respectively. Other investigators reported similar results for ascorbic acid [20,25]. The IC₅₀ values for ascorbic acid found by the HPLC method correlated well with that of spectrophotometry estimation.

Table 3: Free radical scavenging activity of antioxidants and Berry fruit juice freeze dry powder.

Application to polyherbal formulations

The HPLC method was applied for measuring the free radical scavenging activity of berry fruit juice freeze dry powder in contrast to the standard antioxidants, there was significant difference in the IC₅₀ values of berry fruit juice freeze dry powder when determined by both the methods (Table 3). Spectrophotometry estimation showed no free radical scavenging effect for Black berry, Macqui berry, whereas HPLC method discovered IC₅₀ of the same at lower concentrations.

All these berry fruit juice freeze dry powders contain color pigments which will contribute to the observed difference in the determined IC₅₀ values by the spectrophotometry. The said pigments might interfere with the absorbance of DPPH in the colorimetric method. This unwanted interference may hinder the detection of small changes in the DPPH absorbance. Yamaguchi et al. [20] reported similar results for beverages indicating the insensitiveness and non-specific analysis of DPPH by spectrophotometry.

However, the novel HPLC method was specific for DPPH and was based on the reduction in DPPH peak area. The superiority of HPLC method was more evident from the detection of small changes in the DPPH absorbance reflected by the peak area even in the presence of mixture of berry fruit juice freeze dry powder and colorants.

The current skin care market is witnessing a huge influx of a variety of berry fruit freeze dry powder for the care and maintenance and skin and other health related disorders. This in turn has increased the demand for rapid standardization and analytical methods to differentiate any batch-to-batch variations and also their efficacies. The age old DPPH spectrophotometric method for evaluation of antioxidant activity is not capable of indicating the exact antioxidant activity of certain fruit freeze dry powder due to the interferences from color pigments of the matrices itself. Hence a simple and sensitive novel HPLC method was developed for screening antioxidant activity of berry fruit juice freeze dry powder. The developed HPLC method was specific for DPPH with an acceptable reproducibility within a short run time allowing for rapid determination of radical scavenging activity of several samples. The IC₅₀ values determined for the standard antioxidants by the HPLC method conforms well to those determined by Spectrophotometry. This HPLC method was successfully applied for the determination of antioxidant activity of berry fruit juice freeze dry powders and can serve as a quality control tool.
