Research Article - (2017) Volume 5, Issue 1
In an attempt to find a new class of cytotoxic agents, a series of fused steroidal derivatives containing lactone moiety were prepared via Michael addition reaction of α, β-unsaturated steroidal ketones with ethyl chloroacetate in basic medium. The characterization of novel compounds was accomplished by spectroscopic techniques such as IR, 1H NMR, 13C NMR, Mass spectrometry and elemental analysis. The compounds were screened for in vitro cytotoxicity against some particular human cancer cell lines using the MTT assay during which the compound 4 and 5 depicted potential anticancer behavior after showing IC50=19.41 μmol L−1 and 19.27 μmol L−1 against HeLa and MCF-7 cell line, respectively. The Gel electrophoresis demonstrated that steroidal lactone showed strong interaction during the concentration dependent cleavage activity with pBR322 DNA. The molecular docking study suggested the non-covalent bonding of steroidal lactones in minor groove of DNA. The results revealed that the synthesized compounds have better prospectus to act as cancer chemotherapeutic candidates which warrants further in vivo anticancer investigations.
Keywords: Steroidal lactone; Ethyl chloroacetate; Anticancer; MTT assay
Cancer is a disease in which the control of growth is lost in one or more cells, leading either to a solid mass of cells known as a tumour or to a liquid cancer (i.e. blood or bone marrow-related cancer). It is one of the leading causes of death throughout the world, in which the main treatments involve surgery, chemotherapy, and/or radiotherapy. Chemotherapy involves the use of drugs to selectively destroy tumour cells or at least limit their proliferation. The use of chemotherapy began in the 1940s with nitrogen mustards, which are extremely powerful alkylating agents, and antimetabolites. Since the early success of these initial treatments, a large number of additional anticancer drugs have been developed [1,2] which, to date are not totally successful interferences. Therefore, anticancer drug design is a very active area in medicinal chemistry and over the past few decades extensive research has led to the development of many chemotherapeutic agents. However, none of these agents are able to eliminate the cancer completely [3,4]. The limitations of current anticancer drugs and rapid development of drug resistance [5-7] have highlighted the need for the discovery of new anticancer agents, preferably with novel mechanisms of action.
The modified steroidal derivatives have been a rich source of candidates with potential pharmaceutical applications that have encouraged the design and synthesis of new analogs with increased pharmacological activity. Recently, several steroidal derivatives have been investigated as new curative agents for cancers [8-10]. In addition, a great number of the modified steroids containing α, β -unsaturated ketone described as anticancer agents [11-13]. Moreover, α, β-unsaturated carbonyl steroids fused heterocyclic rings were indicated as an aromatase inhibitors to resist cancers [14]. Inspired by the prior art, we became interested in developing heterosteroid compounds, in which pharmacologically crucial structural elements from two molecules are combined to produce a non-identical twin drug, is a rational approach to obtain therapeutically useful molecules. In view of the facts mentioned above, and in continuation with our earlier work [15], we herein report the synthesis of new steroidal derivatives clubbed with lactone moiety with the aim of investigating their cytotoxic behavior.
Chemistry
All chemicals were purchased from Sigma-Aldrich and Merck (India) and were used without further purification. Melting points were recorded Kofler apparatus and were uncorrected. IR spectra were recorded on KBr pellets with Pye Unicam SP3-100 spectrophotometer and values are given in cm-1. 1H and 13C spectra in dilute CDCl3 solutions at 303 K were run on a Bruker Avance DRX 500 NMR spectrometer equipped with a 5 mm diameter broad band inverse probehead working at 500 MHz for 1H and at 125 MHz for 13C, respectively. 1H chemical shifts were referenced to the trace signal of CHCl3 (7.26 ppm from int. TMS) and 13C chemical shifts to the center peak of the solvent signal (77.00 ppm from int. TMS). The following abbreviations were used to indicate the peak multiplicity s–singlet, d– doublet, t–triplet, m–multiple and values are given in parts per million (ppm) (δ). Mass spectra were recorded on a JEOL SX 102/ DA-6000 Mass Spectrometer. Analytical data of C, H, N were within 0.04% of the theoretical values and were obtained using Carlo Erba Analyzer. Thin layer chromatography (TLC) plates were coated with silica gel G and exposed to iodine vapours to check the homogeneity as well as the progress of reaction. Sodium sulphate (anhydrous) was used as a drying agent.
To a solution of steroidal α, β-unsaturated ketone 1-3 (1 mmol) in ethanol (10 mL), ethyl chloroacetate (1 mmol) and few drops of piperidine were added. The reaction mixture was refluxed for 12-15 h. After completion of reaction, as determined by TLC, the reaction mixture was diluted with water and extracted thoroughly with ether. The extracts were washed successively with water and dried over anhydrous sodium sulfate (Na2SO4). Evaporation of solvents gave the crude product which was recrystallized from methanol to obtain pure products as steroidal lactones 4-6.
3′-Chloro-3′, 4′-dihydro-3β-acetoxy-5α-cholestano[5,7-c d]-2HLactone (4): Yellow powder, Yields (80%); M.p.123°C;Anal.Calc. for C31H47ClO4: C,71.26, H, 8.98. found: C,71.28, H,8.99 ; IR (KBr) υ cm-1: 1735 (OCOCCl), 1712 (OCOCH3), 1615 (C=C), 1142 (C-O), 754 (CCl) ;1H NMR (CDCl3, 500 MHz): δ 5.3 (s, 1H, C6H), 4.4 (s,1H, C3'H ), 4.6 (m, 1H, C3α-H, W½=12 Hz, A/B trans), 2.21 (s, 3H, OCOCH3), 1.12 (s,3H,C10H), 1.06 (s, 3H, C19H), 0.87 (d, 6H, C26H, C27H), 0.78 (s, 3H, C18H), 0.71 (s, 3H, C13H), 0.92 (d, 3H,C21H), 0.92 and 0.85 (other side chain methyl groups). 13C NMR (CDCl3, 125 MHz): δ 170, 162, 150, 122, 70, 66, 57, 48, 43, 42, 40, 39, 36, 35, 34, 33, 32, 31, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19, 16, 12. MS: m/z 517/519 [M+.].
3′-Chloro-3′, 4′-dihydro-3β-chloro-5α-cholestano[5,7-cd] -2H-Lactone (5): Yellow powder, Yields (78%); M.p.122°C; Anal.Calc. for C29H44Cl2O2: C, 70.14, H, 8.90. found: C, 70.29, H, 8.95 ; IR (KBr) υ cm-1: 1732 (OCOCCl), 1612 (C=C), 1140 (C-O), 749, 752 (2 × C-Cl) ; 1H NMR (CDCl3, 500 MHz): δ 5.1 (s, 1H, C6H), 4.2 (s,1H, C3'H ), 3.8 (m, 1H, C3α-H, W½=12 Hz, A/B trans), 1.12 (s, 3H, C10H), 1.06 (s, 3H, C19H), 0.87 (d, 6H, C26H, C27H), 0.78 (s, 3H, C18H), 0.71 (s, 3H, C13H), 0.92 (d, 3H, C21H), 0.92 and 0.85 (other side chain methyl groups). 13C NMR (CDCl3, 125 MHz): δ 162, 150, 122, 66, 59,53, 49, 44, 43, 42, 41, 40, 37, 36, 34, 33, 32, 31, 29, 28, 27, 26, 25, 24, 23,22, 19, 16, 12. MS: m/z 491/493 [M+.].
3′-Chloro-3′, 4′-dihydro -5α-cholestano [5,7-cd]-2H-Lactone (6): Yellow powder, Yields (76%); M.p.124°C; Anal. Calc. for C29H45ClO2: C, 75.34, H, 8.91. found: C, 75.54, H, 9.84 ; IR (KBr) υ cm-1: 1730 (OCOCCl), 1614 (C=C), 1145 (C-O) 751 (C-Cl) ; 1H NMR (CDCl3, 500 MHz): δ 5 (s, 1H, C6H), 4.3 (s,1H, C3'H), 1.12 (s, 3H, C10H), 1.06 (s, 3H, C19H), 0.87 (d, 6H, C26H, C27H), 0.78 (s, 3H, C18H), 0.71 (3H, s, C13H), 0.92 (d, 3H, C21H), 0.92 and 0.85 (other side chain methyl groups). 13C NMR (CDCl3, 125 MHz): δ 162, 150, 122, 66, 56, 48, 45, 44, 43, 40, 38, 37, 36, 35, 34, 31, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19, 16, 12. MS: m/z 459/457 [M+.].
In vitro cytotoxicity
Cell lines and culture conditions: Human cancer cell lines HeLa (human cervical cancer cells) / ATCC (CCL-2), A549 (human lung carcinoma cells) / ATCC (CCL- 185), MCF-7 (breast cancer cells) / ATCC (HTB-22) and HL-60 (human Leukaemia) / ATCC (CCL- 240) were taken for the study. A549 and HL-60 cells were grown in RPMI 1640 supplemented with 10% foetal bovine serum (FBS), 10 U penicillin and 100 μg/mL streptomycin at 37°C with 5% CO2 in a humidified atmosphere. HeLa cells and MCF-7 were grown in Dulbecco’s modified Eagle’s medium (DMEM) supplanted with FCS and antibiotics as described above for RPMI 1640. Fresh medium was given every second day and on the day before the experiments were done. Cells were passaged at preconfluent densities, using a solution containing 0.05% trypsin and 0.5 mM EDTA.
Cell viability assay (MTT): The anticancer activity in vitro was measured using the MTT assay. The assay was carried out according to known protocol [16,17]. Exponentially growing cells were harvested and plated in 96-well plates at a concentration of 1 × 104 cells/well. After 24 h incubation at 37°C under a humidified 5% CO2 to allow cell attachment, the cells in the wells were respectively treated with target compounds at various concentrations for 48 h. The concentration of DMSO was always kept below 1.25%, which was found to be nontoxic to the cells. A solution of 3-(4,5-dimethylthizao1-2-y1)-2,5- diphenyltetrazolium bromide (MTT), was prepared at 5 mg/mL in phosphate buffered saline (PBS; 1.5 mM KH2PO4, 6.5 mM Na2HPO4, 137 mM NaCl, 2.7 mM KCl; pH 7.4). 20 μl of this solution were added to each well. After incubation for 4 h at 37°C in a humidified incubator with 5% CO2, the medium/MTT mixtures were removed, and the formazan crystals formed by the mitochondrial dehydrogenase activity of vital cells were dissolved in 100 μl of DMSO per well. The absorbance of the wells was read with a microplate reader (Bio-Rad Instruments) at 570 nm. Effects of the drug cell viability were calculated using cell treated with DMSO as control.
Data analysis: Cell survival was calculated using the formula: Survival (%)=[(absorbance of treated cells-absorbance of culture medium)/(absorbance of untreated cells - absorbance of culture medium)] × 100 [18,19]. The experiment was done in triplicate and the inhibitory concentration (IC) values were calculated from a dose response curve. IC50 is the concentration in ‘μM’ required for 50% inhibition of cell growth as compared to that of untreated control. IC50 values were determined from the linear portion of the curve by calculating the concentration of agent that reduced absorbance in treated cells, compared to control cells, by 50%. Evaluation is based on mean values from three independent experiments, each comprising at least six microcultures per concentration level.
Gel Electrophoresis
Two concentrations (50 and 100 μM) of compounds and 3 μl of 0.5 μg/μl of pUC19 DNA was loaded with 2 μl of EtBr into 1% agarose gel. The final volume of the reaction mixture for all the wells of gel was 10 μl. The DNA band was visualized under UV transilluminator [20].
Molecular Docking
The rigid molecular docking studies were performed using HEX 6.1 software [21]. The steroidal lactone was taken for the following docking study. The crystal structure of the B-DNA dodecamer d(CGCAAATTTCGC)2 (PDB ID: 1BNA) was downloaded from the protein data bank. All calculations were carried out on an Intel CORE i5, 3.1 GHz based machine running MS Windows XP as the operating system. First, the water molecules were deleted. The DNA was enclosed in a box with number of grid points in x × y × z directions, 76 × 78 × 120 and a grid spacing of 0.375 Å. All calculations were carried out on an Intel CORE i5, 3.1 GHz based machine running MS Windows XP as the operating system. Visualization of the docked pose have been done using Discovery Studio 3.5 molecular graphics program.
Chemistry
Easily accessible steroidal α,β-unsaturated ketones 1-3 were synthesized by literature method [22]. The substrates used for initial studies are 3β-acetoxycholest-5-en-7-one 1, 3β-chlorocholest-5-en- 7-one 2 and cholest-5-en-7-one 3 when allowed to react with ethyl chloroacetate in the present of few drops of piperidin in absolute ethanol to afforded 3′-chloro-3′,4′-dihydro-3β-acetoxy-5α cholestano[5,7-c d]- 2H-Lactone 4, 3′-chloro-3′,4′-dihydro -3β-chloro-5α cholestano[5,7-c d]-2H-Lactone 5 and 3′-chloro-3′,4′-dihydro-5α cholestano- [5,7-c d]- 2H-Lactone 6 as shown in (Scheme 1).
Scheme 1: Showing the formation of steroidal lactones (4-6).
The yield of products was in the range of 76-80%. The products have been characterized based on their spectral (IR, 1H NMR, 13C NMR and MS) studies and elemental analysis. The selected diagnostic bands of IR spectra of synthesized products provide useful information for determining structures of the lactone derivatives. All the compounds 4-6 exhibited absorption bands at 1735 -1730 cm-1 due to(OCOCCl) and 1612-1615 cm-1 due to C=C. The absorption band at 1140-1141 cm-1 as ascribed to the C-O which also confirmed the formation of lactone rings in all compounds and the absorption band at 749-754 cm-1 assigned to C-Cl which also conformed by Beilstein test [23]. The structure of the lactone derivatives was further confirmed by 1H NMR spectra, which proves as a diagnostic tool for the positional elucidation of the proton. Assignments of signals are based on chemical shift and intensity pattern. The 1H NMR shows showed one singlet in the region δ 5-5.3 for (C6-H), signal as a singlet at δ 4.2-4.4 indicating the presence (C3′-H, lactone ring). The broad multiple signal appeared at δ 3.8-4.6 (C3 α-H, W½=12 Hz) attributed to C3 α -H (A/B ring junction trans). Other prominent peaks of steroidal nucleus in the compounds 4-6 were observed at their characteristic positions and are given in experimental section.13C NMR spectrum of the compounds also supported the proposed structure. All the compounds exhibited signals at δ 162 due to (OCOCCl). Signals at δ 150-122 for C7 and C6 and signals at δ 66 due to C3' of the lactone ring are also observed. In MS, the distinctive signals were observed, the mass spectra of compounds 4-6 which followed the definite fragmentation pattern. The molecular ion peaks (M+.) for compounds 4-6 were observed at m/z 517/519, 491/493 and 459/457 respectively. The stereochemical assignation has been performed based on half band width (W1/2) value of C3-axial proton in the 1H NMR spectra of compounds 4 and 5 which clearly suggested that A/B ring junction is trans [24] and based on model chemistry which suggest that the attack of enolate it must be from (α) side which is less hindered compare to (β) which is more hindered due to present of C10 methyl.
Based on foregoing discussion, a tentative mechanism has been proposed for the formation of steroidal lactone via Michael addition reaction (Scheme 2) which involve in first step, removes the acidic α-hydrogen by piperidin giving the reactive enolate. In second step, nucleophilic enolate will attack the conjugated ketone at the electrophilic alkene in nucleophilic addition type process afforded the intermediate, which subsequently underwent intramolecular cyclization to give the ultimate compounds 4-6.

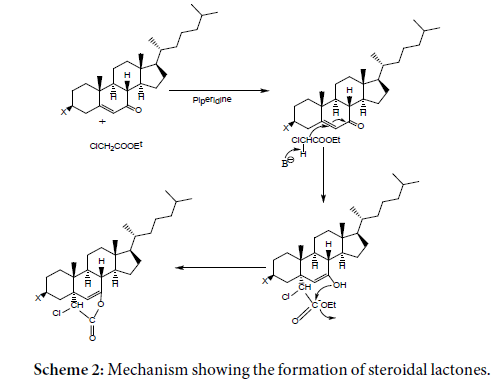

Scheme 2: Mechanism showing the formation of steroidal lactones.
In vitro cytotoxicity
In vitro evaluation of anticancer activity of the synthesized compounds was carried out using the 3-(4,5-dimethylthiazol-2-yl)- 2,5-diphenyltetrazolium bromide (MTT) assay [16]. The conversion of the soluble yellowish MTT to the insoluble purple formazan by active mitochondrial lactate dehydrogenase of living cells has been used to develop an assay system for measurement of cell proliferation. Cell viability was measured with the purple formazan that was metabolized from MTT mitochondrial lactate dehydrogenase, which is active only in live cells. The screening of compounds 4-6 (Table 1) was done using the human cancer cell lines lines; HeLa (human cervical cancer cells) / ATCC (CCL-2), A549 (human lung carcinoma cells) / ATCC (CCL- 185), MCF-7 (breast cancer cells) / ATCC (HTB-22) and HL- 60 (human Leukaemia) / ATCC (CCL-240). Anticancer potency of the compounds was indicated by IC50 values that were calculated by linear regression analysis of the concentration-response curves obtained for each compound. Anticancer study showed that the compound 5 was most active towards MCF-7 cell among the four cancer cell lines with IC50=19.41 ± 0.7 while the compound 5 was more active against HeLa with IC50=19.27 ± 0.8. These results support the previous studies that steroids can regulate a variety of biological processes and specific potential drug candidates for the treatment of leukaemia and breast cancers [25]. The results indicate that the presence of electron withdrawing groups chlorine and acetoxy at position 3β has an impact on the bioactivity of the compounds [26,27]. It is worth pointing out that 3′-chloro-3′,4-dihydro-5α cholestano [5,7-c d]-2H-lactone derivatives 4-6 are not only potent but also selective against cancer cell lines, specifically against breast and leukemia cells, compared to the other cancer cell lines.
| IC50(μmol l-1)a | ||||
|---|---|---|---|---|
| Compound | A549 | HeLa | HL-60 | MCF-7 |
| S 4 | 29.32 ± 0.2 | 19.41 ± 0.7 | 23.21 ± 0.9 | 34.71 ± 0.3 |
| 5 | 45.44 ± 1.3 | >50 | 31.71 ± 0.2 | 19.27 ± 0.8 |
| 6 | >50 | 27.17 ± 0.5 | >50 | 27.12 ± 0.7 |
- Cell-growth inhibition was analyzed by the MTT assay.
- a IC50 is the concentration of compound that inhibits 50% of cell growth.
Table 1: Showing anticancer activity data of compound 4-6 against Human cancer cell lines.
Gel Electrophoresis Assay
All the compounds (4-6) were examined for their binding abilities with DNA by agarose gel electrophoresis. At low concentration, the compounds (4-6) do not show any visible change in the band intensity of DNA (lane 2, 4, 6). However, at higher concentrations band intensity gets decreased by compounds 4-6 (lane 3, 5, 7). Thus electrophoretic pattern demonstrate that all the compounds interact with DNA. The loss in the band intensity at higher concentration may be assumed due to the non-covalent binding mode of the compounds 4-6 to DNA, which in turn results in the displacement of EtBr, as depicted by molecular docking studies. In case of lane 2, 4, 6 the concentration of the compounds is not sufficient for the displacement of EtBr. In the Figure 1, lane 1 contains DNA only, lane 2, 4, 6 contains DNA and 50 μM of compounds 4-6 and lane 3, 5, 7 contain DNA and 100 μM of compounds 4-6. This conclusion was further supported from the fluorescence studies, which also gave evidence for interaction of the compounds with DNA.
Figure 1: Agarose gel electrophoresis of reaction mixtures containing DNA and compounds 4–6 lane 1, DNA only, lanes 2, 3 DNA and 4 (50 and 100 μM), lanes 4, 5 DNA and 5 (50 and 100 μM) and lanes 6, 7 DNA and 6 (50 and 100 μM).
Molecular Docking
The molecular docking technique is an attractive tool to get insight of the mechanistic study, by placing a molecule into the binding site of the target specific region of the DNA. In our experiment, rigid molecular docking (two interacting molecules were treated as rigid bodies) studies were performed with HEX 6.1 software to predict the binding modes of compounds with a DNA duplex of sequence d(CGCAAATTTCGC)2 dodecamer (PDB ID: 1BNA), and provide an energetically favourable docked structures (DNA-steroidal lactone shown in Figure 2). It is evident from the figure that these type of compounds gets attached with DNA through minor groove and their lactone moiety shows groove binding between the nucleotide base pairs. The docked steroidal lactone-DNA complex is shown in Figure 2 which depicts that during the binding there is no hydrogen bonding between the steroidal lactone in between the base pairs of minor groove but literature reveals that intercalating forces like van der Waals forces are much more important than hydrogen bonding of the compound to the base pairs of DNA [21]. In this configuration, the group at 3β-axial position (i.e., X-moiety) remains inclined towards the phosphodiester bond of DNA and the possibility of H- bonding cannot be ruled out.

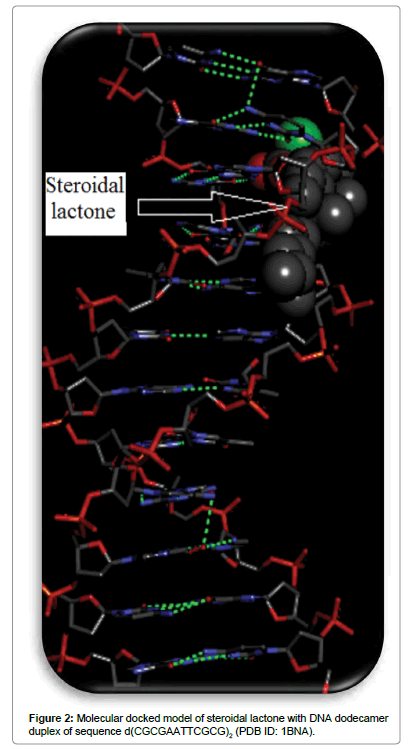

Figure 2: Molecular docked model of steroidal lactone with DNA dodecamer duplex of sequence d(CGCGAATTCGCG)2 (PDB ID: 1BNA).
Since the changes in accessible surface area of interacting residues show a preferential binding of compound between G-C base pairs and bends the DNA slightly in such a way that a part of the steroidal lactone comes between the two base pairs of the minor groove of DNA helix. The resulting relative binding energy of docked steroidal lactone-DNA complex was found to be −279.72 kJmol-1. This value is consistent with the high binding constant obtained from spectroscopic techniques.
The present work involves the simple and convenient strategy for the synthesis of steroidal lactones in reasonably good yields. During cytotoxicity experiments (MTT assay) the compound 5 has been identified showing potential anticancer behaviour of IC50=19.27 against MCF-7 cell line. This study also supports the reported studies about specialty of steroid as anticancer against leukaemia and breast cancer [25]. The molecular docking studies undertaken in the present work are in total agreement with the non-covalent mode of binding (minor groove binding). The gel electrophoresis revealed that compounds depicted concentration dependent DNA strand scission.
In conclusion, the synthesized compounds have better prospectus to act as cancer chemotherapeutic candidates which warrants further in vivo anticancer investigations.
The authors thank the Chairman, Department of Chemistry, A.M.U., Aligarh, for providing necessary research facilities. Facilities provided by SAP for their generous research support are also gratefully acknowledged. Authors (AM and AMD) also thank UGC India for research fellowship. Authors also thank Prof Shamsuzzaman for the successful completion of the work.
