Research Article - (2015) Volume 6, Issue 1
SteroidSaponins from Dioscorea zingiberensis C.H.Wright were separated for the first time using two chromatographic methods for comparison: counter-current chromatography (CCC) coupled with evaporative light scattering detector (ELSD) and preparative reversed phase high-performance liquid chromatography (RP-HPLC) with an ultraviolet detector. Ethyl acetate-n-butanol-methanol-water (4:1:2:4, v/v) was chosen as the two-phase solvent system for CCC, while the acetonitrile-water (25:75 for the first step and15:85 for the second step, v/v) was used as the mobile phase in the preparative RP-HPLC. The following five steroid Saponins were purified by these two chromatographic methods, in one-step operation by CCC and by two-step operation in preparative RP-HPLC:
Keywords: CCC; Preparative RP-HPLC; Steroid saponins; Dioscorea zingiberensis C.H.Wright
Dioscorea zingiberensis C.H.Wright, a unique plant native in China, is one of the most commonly used raw materials for Chinese Traditional Medicine (CTM) [1]. The steroid saponins, primarily contained in the rhizomes of this plant, are the main bioactive components, and have been applied as a folk treatment for cough, anthrax, rheumarthritis, tumefaction, sprain as well as various cardiac diseases in the TCM for a long time [2-6]. Total steroid saponins extracted from other plants of the Dioscoreaceae family are also widely used in clinic for the treatment of coronary heart disease. For example, Di’aoxinxuekang capsules, containing 35% of total steroid saponins of Dioscorea nipponica Makino, have been used for the treatment of coronary heart disease for more than 10 years in China [7]. Owing to their diverse bioactivities, much attention has been paid to the separation and purification of steroid saponins in recent years. It is known that typical steroid saponins such as diosgenin contain one or more carbohydrate residues [8]. Due to their similar structures and relatively higher polarity, separation and purification often become difficult by means of the conventional chromatographic methods. In addition, the conventional method, such as column chromatography, needs repeated steps which are tedious, time-consuming, and may lead to contamination problem. Furthermore, the overall yield of these methods is usually lower, because some of these compounds are irreversibly adsorbed onto the solid support during the separation [9,10]. Therefore, finding much faster and more efficient methods is of great importance.
With the development of modern separation techniques, counter-current chromatography (CCC) and preparative reversed-phase high-performance liquid chromatography (RP-HPLC) have been used for isolation and purification of active components from traditional Chinese herbs and other natural products. CCC is a support-free liquid-liquid partition method which eliminates irreversible adsorption of samples onto the solid support, providing a wider range of selection of two-phase solvent systems and yielding high purity and recovery [11-15]. Being an amplification mode of analytic HPLC, preparative RP-HPLC has become a powerful tool due to its shorter isolation time, excellent efficiency and high recovery [16-19]. Because of these remarkable characteristics, these two chromatographic methods play an important role in current biochemical researches.
In this paper we report for the first time the separation of five steroid saponins from Dioscorea zingiberensis C.H.Wright using two different chromatographic methods, CCC and preparative RP-HPLC.
Apparatus
Preparative CCC instrument employed in this study was a TBE-300A CCC centrifuge (Tauto Biotech Co., Shanghai, China) equipped with a set of three-multilayer coil separation columns and a 20-ml sample loop. The columns were made of polytetrafluoroethylene (PTFE) tubing of 1.5 mm I.D. with a total capacity of 300 ml. The β values (β = r/R, where r is the revolution radius or the distance from the coil to the holder shaft, and R is the revolution radius or the distances between the holder axis and central axis of the centrifuge) ranged from 0.5 at the internal layer to 0.8 at the external layer. The revolution speed of the apparatus was regulated by a speed controller from 0 to 1000 rpm, and 850 rpm was used in this study. The solvent was pumped into the column with a model TBP5002 constant flow pump (Tauto Biotech Co. Ltd, Shanghai, China), and continuous effluent was monitored online with an Alltech 800 evaporative light scattering detector. The effluent was collected by the DBS-100 automatic fraction collector (Huxi Analysis Instrument Factory Co. Ltd, Shanghai, China). This software N2000 workstation (Zhejiang University, Hangzhou, China) was used to record the chromatogram.
Preparative RP-HPLC separation was performed on the Alltech equipment system (Alltech Co. Ltd, California, USA) with a high pressure binary 627 HPLC pump, a manual 2 ml sample loop, and a preparative mode Model 500 UV (Chen Airlines Tech Instrument, Tianjin, China) single wavelength absorbance detector (4.5 µm cell). The separation of steroid saponins was carried out on the GRACE Adsorbosphere (Alltech Co. Ltd, California, USA) C18 column (250 x 22 mm, 10 µm). Evaluation was made on an Allchrom Plus Sever Workstation, and sample fraction was collected by the DBS-100 automatic fraction collector (Huxi Analysis Instrument Factory Co. Ltd, Shanghai, China).
Analytical HPLC separation was performed using the Waters Alliance 2695 equipment (Waters, Milford, MA, USA) with a vacuum degasser, a high pressure quaternary pump, an autosampler, and an Alltech 2000 evaporative light scattering detector. The analytical chromatogram of steroid saponins was obtained with a Welchrom C18 column (250 x 4.6 mm, 5 µm). Evaluation and quantification were made on an Empower Workstation.
Nuclear magnetic resonance (NMR) data were recorded on a Bruker Advance 500 spectrometer (Bruker BioSpin, Rheinstetten, Germany). ESI-MS was performed with Thermo LTQ-XL ion trap mass spectrometer (Thermo Scientific, USA).
Materials
All organic solvents used for CCC and preparative RP-HPLC were of analytical grade and purchased from Tianjin Chemical Factory (Tianjin, China). Acetonitrile used for HPLC was of HPLC-grade, and water purified in a Milli-Q plus system (Millipore, Madrid, Spain) was double distilled water. The rhizomes of Dioscorea zingiberensis C.H.Wright were provided by Yangtze River Pharmaceutical Industry Co., Ltd (Jiangsu, China).
Preparation of total Steroid Saponins
Dried raw rhizomes of Dioscorea zingiberensis C.H.Wright (7 Kg) were powdered and extracted with 70% ethanol for three times. The pooled ethanol extract was evaporated to dryness by a rotary evaporator under reduced pressure, and the residues were redissolved in water and subjected to centrifugation. Then, the supernatant was separated on a D-101 macroporous resin column by eluting with 60% ethanol. The 60% ethanol effluent was collected, and concentrated under reduced pressure to provide a syrup which was redissolved in 2 L of water again and extracted with an equal volume of n-butanol six times successively [20]. The pooled n-butanol extract was concentrated yielding 265 g of residues. In order to further enrich the target components and remove impurities, the residues of n-butanol extract were separated on the silica gel column (100-160 mesh) by eluting with dichloromethane-methanol-water (70:30:10). The effluent was collected according to the Rf value between 0.2~0.5 on thin layer chromatography (TLC) which was developed with a solvent composed of dichloromethane-methanol-water (65:35:10) and then evaporated at 100 °C under reduced pressure. Finally, about 40 g of residues were obtained for subsequent CCC and preparative RP-HPLC separations.
Selection and preparation of two-phase solvent system for CCC
The two-phase solvent system was selected according to the partition coefficient (K) of each target component. Several kinds of solvent systems were prepared each at different volumes and equilibrated in a separation funnel at room temperature. The K values were determined by HPLC analysis as follows: a suitable amount of total steroid saponins (10 mg) was added to 4.0 ml of the pre-equilibrated two-phase solvent system consisted of 2 ml of the upper phase and 2 ml of the lower phase in a 10 ml test tube. The capped test tube was shaken vigorously to thoroughly equilibrate the sample between the two phases. After the equilibration was established, an equal volume (1.5 ml) of each phase was separately transferred into another test tube and evaporated. The residues of each phase were dissolved in an equal volume (2 ml) of methanol and analyzed by HPLC. The K values were calculated according to the equation: K= AU/AL, while AU and AL were the peak area of each compound in the upper and the lower phases, respectively. Ethyl acetate-n-butanol-methanol-water (4:1:2:4, v/v) was finally chosen as the two-phase solvent system. The solvent system was mixed and shaken vigorously to thoroughly equilibrate in a separatory funnel at room temperature, and left over night. Then, the two phases were separated and degassed by sonication for 30 min before use.
Selection of chromatographic conditions in preparative RP-HPLC
The preparative conditions for the RP-HPLC, including separation factor, cycling time and sample loadability, were obtained according to the analytical HPLC chromatographic data. From the suitable analytical HPLC condition, the optimum chromatographic condition for the preparative RP-HPLC was determined by adjusting the sample loads. After testing several kinds of solvent systems, acetonitrile-water with the volumes of 25:75 (v/v) and 15:85 (v/v) were selected as the mobile phase for the first step separation and the second step separation, respectively, while the column packed with the C18 (10 µm, 100 Å) particles based on the previous reference was used as the stationary phase. The mobile phase was degassed by sonication for 30 min before use.
Preparation of sample solution
A 100 mg amount of steroid saponins dissolved in 10 ml of lower phase was used as the sample solution for CCC separation. For RP-HPLC separation, 100 mg of steroid saponins dissolved in 2 ml of acetonitrile-water (25:75, v/v) was used as sample solution for the first step separation, while 80 mg of total steroid saponin sub-fraction collected from the first step separation was dissolved in 2 ml of acetonitrile-water (15:85, v/v) and used as the sample solution for the second step separation.
CCC and preparative RP-HPLC separation procedures
In the CCC experiment, the head-tail elution mode was adopted. A set of three multilayer coil separation columns with a total capacity of 300 ml was first completely filled with the upper stationary phase at a flow rate of 25 ml min-1. Then the apparatus was rotated at 850 rpm while the lower mobile phase was pumped into the head inlet of the column at a flow rate of 2.0 ml min-1 in an isocratic elution mode. The sample solution was injected through the injection valve, after a mobile phase emerged at the tail outlet which indicated that a steady state hydrodynamic equilibrium was established in the column. By applying a flow splitter, a small fraction of the effluent from the outlet of the column was continuously monitored with an Alltech 800 ELSD detector (the drift tube temperature was 55°C, and the gas flow rate was 3.0 L min-1), while the rest of the effluent was collected with an automatic fraction collector set at 5 min for each test tube. During the experiment, the separation temperature was controlled at 25°C. After peak fractions A-D were eluted, the centrifuge run was stopped, and the column contents were blown out by nitrogen gas to collect fraction E that was still remained in the column.
In the preparative RP-HPLC experiment, the entire work was performed on the Alltech equipment system. The GRACE Adsorbosphere C18 column (250 x 22 mm, 10 µm) was first entirely equilibrated by the appropriate mobile phase at a flow rate of 16 ml min-1. Then, the sample solution was injected through the 2 ml injection valve, after a stable baseline was recorded by the Allchrom Plus Sever Workstation indicating that a steady state hydrodynamic equilibrium was established in the column. The effluent from the outlet of the column was continuously monitored by the Model 500 UV at 203nm, and collected with an automatic fraction collector at 3 min for each test tube. Throughout this experiment, the separation temperature was kept at room temperature. Peak fractions I were obtained in the first step, while fraction I was further separated by the second step yielding fractions A-C.
Peak fractions of CCC and preparative RP-HPLC were each concentrated under reduced pressure and their residues were ready for subsequent analysis.
HPLC analysis of peak fractions from CCC and preparative RP-HPLC
Purity of each peak fraction from CCC and preparative RP-HPLC separation was determined by analytic HPLC. The analyses were performed with a Welchrom C18 column (250 x 4.6 mm, 5 µm) at 25°C. The mobile phase composed of acetonitrile-water (30:70, v/v) was isocratically eluted at a flow rate of 1.0 ml min-1, and continuously monitored by an Alltech 2000 evaporative light scattering detector (the drift tube temperature at 104°C, and the gas flow rate of 2.8 L min-1. The purity of CCC and preparative RP-HPLC fractions was calculated using the area normalization.
Identification of peak fractions from CCC and preparative RP-HPLC
Identification of the structure of each peak fraction was performed by means of ESI-MS and 13C NMR. The spectra of ESI-MS were obtained by the Thermo LTQ-XL ion trap mass spectrometer, and the spectra of 13C NMR were obtained by the Bruker Advance 500 spectrometer.
CCC and preparative RP-HPLC separation and HPLC analysis
In CCC, five steroid saponins were obtained with the two-phase solvent system composed of ethyl acetate-n-butanol-methanol-water (4:1:2:4, v/v) in less than 3.5 h with the total elution volume of 420 ml in one step separation. This separation yielded 18.2 mg of compound A (fraction was collected during 100-120 min), 22.4 mg of compound B (fraction was collected during 130-148 min), 15.7 mg of compound C (fraction was collected during 160-180 min), 10.9 mg of compound D (fraction was collected during 190-205 min), and 10.2 mg of compound E (from the column contents) from 100 mg of the crude extract (Figure 1). The retention of the stationary phase was 42% of the total column capacity after the separation was completed.

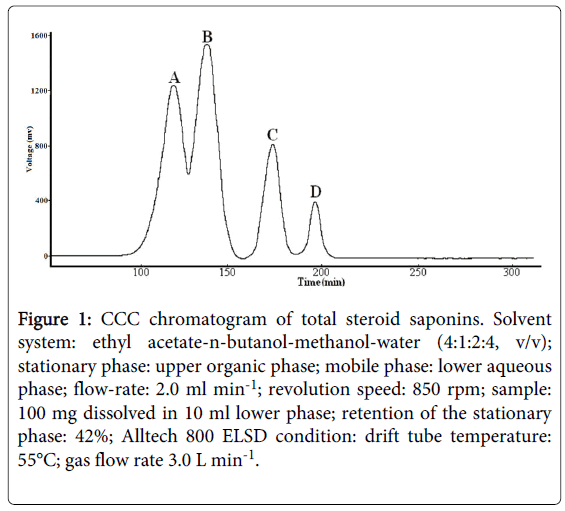

Figure 1: CCC chromatogram of total steroid saponins. Solvent system: ethyl acetate-n-butanol-methanol-water (4:1:2:4, v/v); stationary phase: upper organic phase; mobile phase: lower aqueous phase; flow-rate: 2.0 ml min-1; revolution speed: 850 rpm; sample: 100 mg dissolved in 10 ml lower phase; retention of the stationary phase: 42%; Alltech 800 ELSD condition: drift tube temperature: 55°C; gas flow rate 3.0 L min-1.
In preparative RP-HPLC, the same five steroid saponins were also obtained with the mobile phase of acetonitrile-water (25:75, and 15:85, v/v) in 1h with the total elution volume of 960 ml in two-step separation. Three fractions, I, D and E were obtained in the first step with the mobile phase composed of acetonitrile-water at a volume of 25:75 (v/v). Among those fractions, I was concentrated under reduced pressure and dissolved in suitable solvent which was loaded on the preparative RP-HPLC column and eluted with acetonitrile-water at a volume of 15:85 (v/v). This two-step process yielded 15.7 mg of compound A, 20.5 mg of compound B, 14.2 mg of compound C, 8.5 mg of compound D and 8.8 mg of compound E from 100 mg of the crude extract (Figure 2).

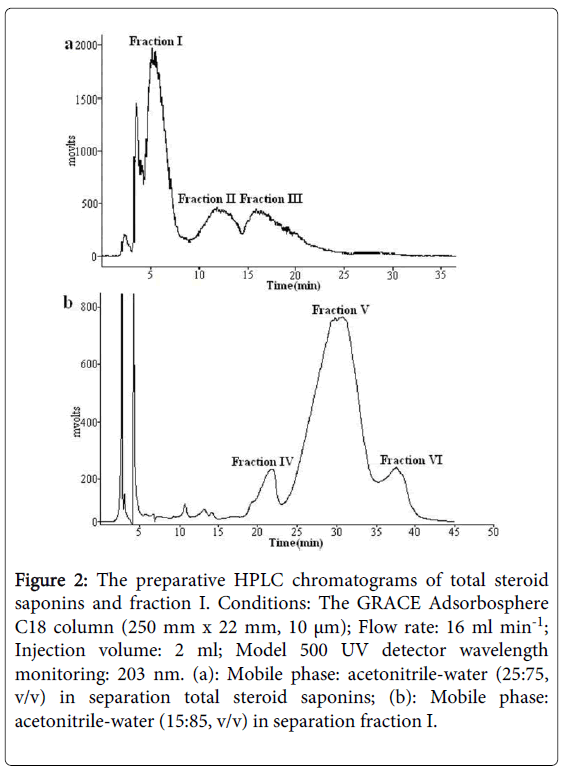

Figure 2: The preparative HPLC chromatograms of total steroid saponins and fraction I. Conditions: The GRACE Adsorbosphere C18 column (250 mm x 22 mm, 10 μm); Flow rate: 16 ml min-1; Injection volume: 2 ml; Model 500 UV detector wavelength monitoring: 203 nm. (a): Mobile phase: acetonitrile-water (25:75, v/v) in separation total steroid saponins; (b): Mobile phase: acetonitrile-water (15:85, v/v) in separation fraction I.
In these two methods both in the reversed elution mode all compounds were eluted in the order of polarity: the most polar compound was eluted first followed by the rest in the order of decreasing polarity. The purities of these five target compounds obtained by these two methods were over 95%. The analytical HPLC chromatogram is shown in Figure 3.

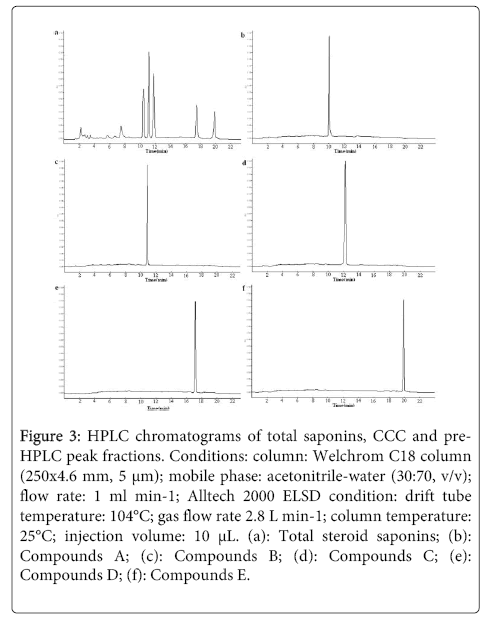

Figure 3: HPLC chromatograms of total saponins, CCC and pre- HPLC peak fractions. Conditions: column: Welchrom C18 column (250x4.6 mm, 5 μm); mobile phase: acetonitrile-water (30:70, v/v); flow rate: 1 ml min-1; Alltech 2000 ELSD condition: drift tube temperature: 104°C; gas flow rate 2.8 L min-1; column temperature: 25°C; injection volume: 10 μL. (a): Total steroid saponins; (b): Compounds A; (c): Compounds B; (d): Compounds C; (e): Compounds D; (f): Compounds E.
The structures of five target compounds were confirmed as the steroid saponins shown in Figure 4 by means of the modern spectroscopic techniques, including ESI-MS shown in Figure 5 and 13C NMR in Table 1.

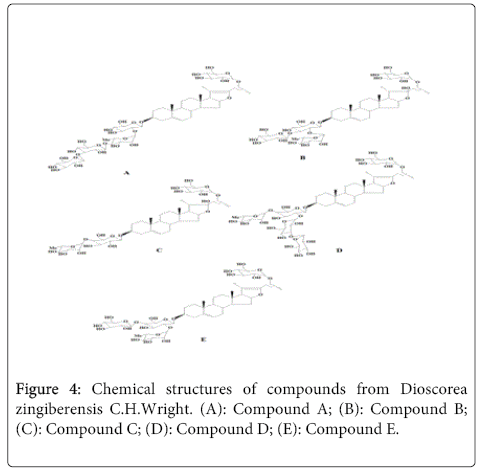

Figure 4: Chemical structures of compounds from Dioscorea zingiberensis C.H.Wright. (A): Compound A; (B): Compound B; (C): Compound C; (D): Compound D; (E): Compound E.
Figure 5: ESI-MS chromatograms of five compounds. (a): Compound A; (b): Compound B; (c): Compound C; (d): Compound D; (e): Compound E.
| Compounds | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Compound A | Compound B | Compound C | Compound D | Compound E | |||||
| 1249 [M+Na]+ | 1087 [M+Na]+ | 925 [M+Na]+ | 1231.67 [M+Na]+ | 1069.33 [M+Na]+ | |||||
| Aglycone | Sugar Moiety | Aglycone | Sugar Moiety | Aglycone | Sugar Moiety | Aglycone | Sugar Moiety | Aglycone | Sugar Moiety |
| (ppm) | (ppm) | (ppm) | (ppm) | (ppm) | (ppm) | (ppm) | (ppm) | (ppm) | (ppm) |
| 37.4 (C-1) | 100.9 (Glu'-1) | 37.2 (C-1) | 100.1 (Glu'-1) | 37.8 (C-1) | 102.3 (Glu'-1) | 37.0 (C-1) | 100.3 (Glu'-1) | 37.5 (C-1) | 99.9 (Glu'-1) |
| 30.5 (C-2) | 77.2 (Glu'-2) | 31.5 (C-2) | 77.3 (Glu'-2) | 30.2 (C-2) | 73.1 (Glu'-2) | 31.4 (C-2) | 81.5 (Glu'-2) | 30.1 (C-2) | 77.2 (Glu'-2) |
| 78.6 (C-3) | 77.0 (Glu'-3) | 71.7 (C-3) | 88.7 (Glu'-3) | 78.6 (C-3) | 73.5 (Glu'-3) | 71.6 (C-3) | 76.2 (Glu'-3) | 78.0 (C-3) | 77.7 (Glu'-3) |
| 38.8 (C-4) | 82.1 (Glu'-4) | 42.5 (C-4) | 69.9 (Glu'-4) | 39.9 (C-4) | 72.2 (Glu'-4) | 42.5 (C-4) | 78.6 (Glu'-4) | 38.9 (C-4) | 82.1 (Glu'-4) |
| 141.3 (C-5) | 78.4 (Glu'-5) | 140.2 (C-5) | 78.0 (Glu'-5) | 141.4 (C-5) | 74.6 (Glu'-5) | 140.5 (C-5) | 77.4 (Glu'-5) | 140.7 (C-5) | 76.2 (Glu'-5) |
| 122.5 (C-6) | 62.9 (Glu'-6) | 121.9 (C-6) | 62.1 (Glu'-6) | 121.5 (C-6) | 69.2 (Glu'-6) | 121.0 (C-6) | 61.6 (Glu'-6) | 121.8 (C-6) | 62.5 (Glu'-6) |
| 32.4 (C-7) | 102.0 (Rha'-1) | 32.1 (C-7) | 101.1 (Rha'-1) | 32.4 (C-7) | 105.2 (Glu''-1) | 32.0 (C-7) | 101.7 (Rha'-1) | 32.4 (C-7) | 101.8 (Rha'-1) |
| 30.9 (C-8) | 72.4 (Rha'-2) | 31.7 (C-8) | 72.0 (Rha'-2) | 31.2 (C-8) | 75.7 (Glu''-2) | 31.2 (C-8) | 72.8 (Rha'-2) | 31.4 (C-8) | 72.5 (Rha'-2) |
| 49.9 (C-9) | 72.1 (Rha'-3) | 49.5 (C-9) | 72.2 (Rha'-3) | 50.7 (C-9) | 78.5 (Glu''-3) | 50.3 (C-9) | 72.7 (Rha'-3) | 50.3 (C-9) | 72.7 (Rha'-3) |
| 37.5 (C-10) | 74.2 (Rha'-4) | 36.1 (C-10) | 73.5 (Rha'-4) | 37.2 (C-10) | 71.2 (Glu''-4) | 36.4 (C-10) | 74.1 (Rha'-4) | 37.1 (C-10) | 74.1 (Rha'-4) |
| 21.2 (C-11) | 69.6 (Rha'-5) | 20.5 (C-11) | 69.8 (Rha'-5) | 21.2 (C-11) | 78.3 (Glu''-5) | 20.7 (C-11) | 69.4 (Rha'-5) | 21.2 (C-11) | 69.5 (Rha'-5) |
| 40.8 (C-12) | 18.2 (Rha'-6) | 39.4 (C-12) | 18.8 (Rha'-6) | 40.9 (C-12) | 63.5 (Glu''-6) | 39.7 (C-12) | 18.9 (Rha'-6) | 39.6 (C-12) | 18.7 (Rha'-6) |
| 41.5 (C-13) | 105.7 (Glu''-1) | 41.9 (C-13) | 103.1 (Glu''-1) | 40.5 (C-13) | 100.3 (Rha'-1) | 40.0 (C-13) | 104.3 (Glu''-1) | 43.4 (C-13) | 104.9 (Glu''-1) |
| 56.8 (C-14) | 88.1 (Glu''-2) | 56.1 (C-14) | 74.0 (Glu''-2) | 56.7 (C-14) | 78.7 (Rha'-2) | 56.6 (C-14) | 73.5 (Glu''-2) | 54.9 (C-14) | 78.6 (Glu''-2) |
| 32.1 (C-15) | 74.6 (Glu''-3) | 31.2 (C-15) | 77.5 (Glu''-3) | 32.7 (C-15) | 78.9 (Rha'-3) | 31.6 (C-15) | 88.2 (Glu''-3) | 34.5 (C-15) | 71.7 (Glu''-3) |
| 81.2 (C-16) | 69.2 (Glu''-4) | 81.0 (C-16) | 71.9 (Glu''-4) | 81.4 (C-16) | 62.5 (Rha'-4) | 80.8 (C-16) | 69.7 (Glu''-4) | 84.4 (C-16) | 78.5 (Glu''-4) |
| 63.8 (C-17) | 78.9 (Glu''-5) | 62.5 (C-17) | 78.3 (Glu''-5) | 64.2 (C-17) | 79.1 (Rha'-5) | 62.3 (C-17) | 77.6 (Glu''-5) | 64.5 (C-17) | 62.8 (Glu''-5) |
| 16.7 (C-18) | 61.1 (Glu''-6) | 16.4 (C-18) | 60.3 (Glu''-6) | 16.8 (C-18) | 18.2 (Rha'-6) | 16.5 (C-18) | 61.8 (Glu''-6) | 14.1 (C-18) | 61.8 (Glu''-6) |
| 20.0 (C-19) | 105.2 (Glu'''-1) | 19.1 (C-19) | 100.2 (Glu'''-1) | 19.9 (C-19) | 19.7 (C-19) | 105.2 (Glu'''-1) | 19.4 (C-19) | 105.2 (Glu'''-1) | |
| 40.9 (C-20) | 75.4 (Glu'''-2) | 41.4 (C-20) | 78.4 (Glu'''-2) | 41.5 (C-20) | 41.6 (C-20) | 75.4 (Glu'''-2) | 104.9 (C-20) | 75.0 (Glu'''-2) | |
| 16.6 (C-21) | 78.3 (Glu'''-3) | 14.8 (C-21) | 91.3 (Glu'''-3) | 16.2 (C-21) | 14.3 (C-21) | 78.3 (Glu'''-3) | 11.8 (C-21) | 78.6 (Glu'''-3) | |
| 110.7 (C-22) | 71.1 (Glu'''-4) | 108.9 (C-22) | 69.2 (Glu'''-4) | 110.7 (C-22) | 109.3 (C-22) | 71.8 (Glu'''-4) | 152.5 (C-22) | 71.2 (Glu'''-4) | |
| 36.8 (C-23) | 62.3 (Glu'''-5) | 31.3 (C-23) | 62.6 (Glu'''-5) | 37.1 (C-23) | 31.6 (C-23) | 78.4 (Glu'''-5) | 23.7 (C-23) | 78.5 (Glu'''-5) | |
| 28.5 (C-24) | 78.5 (Glu'''-6) | 28.4 (C-24) | 61.7 (Glu'''-6) | 28.4 (C-24) | 28.6 (C-24) | 63.3 (Glu'''-6) | 31.4 (C-24) | 61.9 (Glu'''-6) | |
| 34.7 (C-25) | 105 (Glu''''-1) | 30.1 (C-25) | 34.1 (C-25) | 30.1 (C-25) | 106.3 (Glu''''-1) | 33.5 (C-25) | |||
| 75.6 (C-26) | 75.1 (Glu''''-2) | 66.9 (C-26) | 75.2 (C-26) | 66.8 (C-26) | 75.7 (Glu''''-2) | 74.9 (C-26) | |||
| 17.8 (C-27) | 78.2 (Glu''''-3) | 18.4 (C-27) | 17.8 (C-27) | 17.2 (C-27) | 78.6 (Glu''''-3) | 17.3 (C-27) | |||
| 71.7 (Glu''''-4) | 71.9 (Glu''''-4) | ||||||||
| 78.4 (Glu''''-5) | 78.7 (Glu''''-5) | ||||||||
| 62.4 (Glu''''-6) | 62.6 (Glu''''-6) | ||||||||
Table 1: The corresponding MS and carbon data of five compounds by 13C NMR method.
Data of compound A: ESI-MS(m/z): 1249 ([M+Na]+), molecular formula: C57H94O28. Compared with Ref [21], compound A was identified as 26-O-β-D-glucopyranosyl-(25R)-furost-?5(6)-en-3β,22ζ,26-triol-3-O-β-D-glucopyranosyl-(1→3)-β-D-glucopyranosyl-(1→4)-α-L-rhamnopyranosyl-(1→2)-β-D-glucopyranoside.
Data of compound B: ESI-MS(m/z): 1087 ([M+Na]+), molecular formula: C51H84O23. Compared with Ref [11,21], compound B was identified as 26-O-β-D-glucopyranosyl-(25R)-furost-?5(6)-en-3β,22ζ,26-triol-3-O-β-D-glucopyranosyl-(1→3)-α-L-rhamnopyranosyl-(1→2)-β-D-glucopyranoside.
Data of compound C: ESI-MS(m/z): 925 ([M+Na]+), molecular formula: C45H74O18. Compared with Ref [22], compound C was identified as 26-O-β-D-glucopyranosyl-(25R)-furost-?5(6)-en-3β,22ζ,26-triol-3-O-α-L-rhamnopyranosyl-(1→4)-β-D-glucopyranoside.
Data of compound D: ESI-MS(m/z): 1231.67 ([M+Na]+), molecular formula: C57H92O27. Compared with Ref [22], compound D was identified as 26-O-β-D-glucopyranosyl-(25R)-furost-?5(6),20(22)-diene-3β,26-diol-3-O-α-L-rhamnopyranosyl-(1→4)-[β-D-glucopyranosyl-(1→3)-β-D-glucopyranosyl-(1→2)]-β-D-glucopyranoside.
Data of compound E: ESI-MS(m/z): 1069.33([M+Na]+), molecular formula: C51H82O22; compound E was identified as 26-O-β-D-glucopyranosyl-(25R)-furost-?5(6),20(22)-diene-3β,26-diol-3-O-β-D-glucopyranosyl-(1→4)-α-L-rhamnopyranosy-(1→2)-β-D-glucopyranoside.
Optimization of the conditions of CCC and preparative RP-HPLC
In the CCC separation, the first step for selecting a suitable two-phase solvent system requires almost 90% of the entire process of separation. The suitable K values for CCC are in a range of 0.5-2 which gives an efficient separation within a reasonable run time. A smaller K value would elute the solute peaks near the solvent front with low resolution, while a larger K value tends to give better resolution but with broader and more dilute peaks due to a longer elution time [23,24]. Since the steroid saponins in the rhizomes of Dioscorea zingiberensis C.H.Wright contain some carbohydrates, these saponins have comparatively high polarity and satisfactory solubility in hydrophilic solvents. In order to distribute the target compounds between the two phases, both phases must have certain polarity. In the present experiment, various two-phase solvent systems each at different volumes were tested, and the K values of the target compounds in these solvent systems are summarized in Table 2. Finally, the two phase solvent system composed of ethyl acetate-n-butanol-methanol-water at a volume of 4:1:2:4 (v/v/v/v) was selected as the two-phase solvent system for CCC separation. Although the same solvent system at the ratio of 4:2:2:4 (v/v/v/v) exhibited a better retention of stationary phase of 45% than the former one, it looked like inappropriate when considered the K value of compound E, which led to a long separation and dilute as well as broad peak with much solvent waste according to the gold’s rules [24]. Therefore, the solvent in the current study was used.
| Two-phase solvent systems | Ratio(v/v) | The final retention of stationary phase | K | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| Chloroform-methanol-water | 4:03:02 | - | 22.2 | 132.89 | 25.45 | 35.1 | 37.2 |
| Chloroform-n-butanol-methanol-water | 4:0.2:3:2 | - | 136.4 | 27.5 | 14.2 | 33.1 | 35.9 |
| n-hexane-ethyl acetate-methanol-water | 1:1:1:1 | - | - | - | - | - | - |
| Ethyl acetate-n-butanol-water | 4:01:05 | - | 0.16 | 0.02 | 0.08 | 0.32 | 0.41 |
| Ethyl acetate-n-butanol-methanol-water | 4:1:0.5:6 | - | 0.21 | 0.04 | 0.14 | 0.41 | 0.53 |
| Ethyl acetate-n-butanol-methanol-water | 8:0.5:2:4 | 28% | 0.28 | 0.1 | 0.19 | 0.55 | 0.72 |
| Ethyl acetate-n-butanol-methanol-water | 7:0.5:2:4 | 30% | 0.32 | 0.14 | 0.24 | 0.84 | 1.03 |
| Ethyl acetate-n-butanol-methanol-water | 6:0.5:2:4 | 32% | 0.4 | 0.21 | 0.54 | 1.03 | 1.52 |
| Ethyl acetate-n-butanol-methanol-water | 4:1:2:4 | 42% | 0.49 | 0.98 | 1.23 | 1.58 | 1.97 |
| Ethyl acetate-n-butanol-methanol-water | 4:2:2:4 | 45% | 0.53 | 1.15 | 1.74 | 1.98 | 2.35 |
Table 2: Comparison of CCC and preparative RP-HPLC.
In a preparative RP-HPLC separation, finding suitable lab-scale preparative conditions from the analytical HPLC chromatographic data is the most challenging work in the whole experiment [25]. The preparative chromatographic data should be optimized for faster production rate and higher purity. The production rate depends mainly on the cycling time, whereas the purity is determined by the following two factors, i.e., the resolution and the sample saturation capacity on the column. The cycling time and the resolution can be calculated from the analytical scale chromatographic data, while the sample saturation capacity is only determined by performing overloading experiments or by measuring the equilibrium adsorption isotherms when there is no reference available. The cycling time should be neither too long nor too short. Longer cycling time would result in lower efficiency and consumption of abundant solvent while shorter cycling time couldn’t give enough peak resolution of the target compounds. The sample loading capacity should be tested according to the peak resolution where separation factor of approximately 1.5 will produce complete resolution between the two peaks. Based on the previous reference, the column packed with reversed-phase silica gel C18 particle was used as stationary phase, and the mobile phase consisted of acetonitrile-water with thesis of 25:75 (v/v) and 15:85 (v/v) were used in preparative RP-HPLC.
Comparison of CCC and preparative RP-HPLC separations
CCC is a recently developed liquid-liquid partition chromatography without solid support giving a choice of various two-phase solvent systems, while the preparative RP-HPLC is a traditional liquid-solid chromatography with high efficiency and high recovery with a column containing a wide range of high efficiency packing material. Therefore, there are a number of differences in their performance between them as described in Table 3. Some performance parameters of these two different approaches are summarized in Table 4, among which some differ greatly. These differences are mainly derived from the different volumes of active stationary phase available in each separation method. The stationary phase in CCC is a liquid which typically comprises 75% or more of the column volume, and the lack of a solid support means that this entire volume is accessible to solute. This contrasts with the relatively low active stationary phase volume of RP-HPLC supports and CCC allows the injection of up to 10% of the column volume without chromatographic disturbance.
| Various aspects | CCC | preparative RPHPLC |
|---|---|---|
| Separation mechanism | Liquid-liquid mode | Liquid-solid mode |
| Irreversible adsorption | None | Some |
| Cycle time of each separation | Long | Short |
| Choice of solvent system | Many | Few |
| Solid phase types | None | Many |
| Elution mode | Few | Several |
| Sample preparation | Simple | Complex |
| Optimizing the chromatographic condition |
Complex | Complex |
| Sample loading capacity | Large | Small |
| Effluent monitoring method Selecting solvent system Solvent consumption Amplification from the analytical mode Separation efficiency Recoveries |
Few Time-consuming Low Relatively simple A little better higher |
Many Relatively simple High Time-consuming A little worse Lower |
Table 3: Comparison of CCC and preparative RP-HPLC.
| Parameters | CCC | RP-HPLC | Ratio CCC/RP-HPLC |
|---|---|---|---|
| Run time/injection (min) | 210 | 60 | 3.5 |
| Mobile phase flow rate (mL min-1) | 2 | 16 | 0.125 |
| Operating pressure (Mpa) | 2 | 19.97 | 0.1 |
| Column volumes (mL) | 300 | 60 | 5 |
| Sample loading/run (mg) | 100 | 100 | 1 |
| Injection volume (mL) | 10 | 2 | 5 |
| Total solvent used | 420 | 960 | 0.437 |
| Purity of five compounds | Over 95% | Over 95% | Close 1 |
| Detector | ELSD | UV | - |
Table 4: Comparison of performance parameters between CCC and RP-HPLC chromatography for 100 mg steroid saponins separation campaigns.
It is generally recognized that steroid saponins with few chromophores in their structures have very weak UV absorption. Therefore, the UV detector which is the most popular detector among these detection methods, was not adopted in CCC for separation of steroid saponins. Therefore, the evaporative light scattering detector (ELSD), a universal and non-specific detector, was used for CCC for the present study. However, the UV detector could be used in preparative RP-HPLC for the same purpose where the sensitivity was satisfactory at the wavelength of 203 nm, because the mobile phase was transparent at this wavelength. A small volume of effluent from the outlet of the column was lost in CCC due to a flow splitter used in ELSD, whereas there was no sample wastage in preparative RP-HPLC. In addition, the cycle time was 3.5 h in CCC, while it was 1 h in preparative RP-HPLC. Considering these reasons described above, the latter approach was better than the former one.
The crude extract of total steroid saponins could directly be loaded on the CCC column, and pure compounds could be obtained in one step with the total elution volume of 400 ml. Preparative RP-HPLC separation, on the other hand, required two-step operation and pure compounds were obtained with the total elution volume of 960 ml. This clearly indicates that preparative RP-HPLC approach consumed over double amount of solvent compared to CCC. Therefore, CCC was more cost-effective than preparative RP-HPLC.
The separation efficiency was a little different, if their various aspects were compared just as the pre-paragraph mentioned. Abundant solvent with little water were used, however the mobile phrase composed water at higher in reverse preparative HPLC were applied. Therefore, so many reagents should be condensed at higher temperature and recovered, which was a time-consuming procedure. What’s more, the quality of the five compounds would be loss when they were condensed and transferred from this process to another one in the two-step HPLC. At the same time, some quality of separated compounds were absorbed on the solid phrase in HPLC. Therefore, it seemed the separation efficiency in CCC method was a little higher than that in pre-HPLC. Of course, the recoveries of these five compounds revealed the similar results as less quality was lost in CCC.
As stated above, CCC and preparative RP-HPLC each have its own specific advantages: CCC can separate a large amount of crude extracts usually without pre-purification, whereas preparative HPLC produces efficient separation in a short elution time. Recently, combined use of these two methods to isolate and purify some minor and unknown components in crude samples from natural products is becoming a new and superior separation mode over other chromatographic methods due to the complementary action between these two methods [26]. In order to efficiently separate the steroid saponins with high polarity, there is an urgent need for adopting combinational method: with initial preparation preformed by CCC to enrich certain polarity bands containing the chosen targets, followed by further purification using high resolution prep-HPLC procedures with small particle size ODS column, such as 5 µm or 10 µm, the highly pure saponins could be obtained from natural products. Its most significant advantage is that almost quantitative mass balance of components and better resolution were achieved simultaneously within short separation time. Thus, it would facilitate the establishment of optimum separation conditions for almost all kinds of steroid saponins by CCC, prep-HPLC, or with their combination.
Two approaches including CCC and preparative RP-HPLC were each successfully established for the separation and purification of steroid saponins from the same crude extract of Dioscorea zingiberensis C.H.Wright for the first time. Through comparison of the separation time and solvent consumption between these two approaches, it was found that CCC required a longer separation time with much less solvent consumption, while preparative RP-HPLC gave a much shorter separation time but with higher solvent consumption. Five steroid saponins were successfully isolated and purified from the crude extract at high purity of over 95%. These methods can be further applied to isolate other steroid saponins, especially minor and unknown ones from the crude extracts of natural products.
The authors thank Prof. Zhongfu Wang of the Key Laboratory of Resource Biology and Biotechnology in western China for assistance in ESI-MS experiments, and Prof. Yong Sun of the Analysis Test Center for assistance in NMR experiments.
