Natural Products Chemistry & Research

Now-a-days world moving faster and every technology and service came in a nutshell of single word ‘globalization’ but this fast moving world brings very unhealthy and unhygienic lifestyle of fast food, 10-12 working hours, a diet which is lack of nutrients. Ultimately this all results in the increased oxidative stress in normal routine life of a human being. The oxidative stress causes various physiological and psychological disorders some common examples are atherosclerosis, heart disease, ageing, diabetes mellitus, immunosuppression, nervous disorders and others. To regulate the disorder, the helping hand came out in the form of synthetic antioxidant and various food supplements containing antioxidant, but these synthetic antioxidant capsules and dietary supplements are found to be less effective in various cases. In response to satisfy the thrust of antioxidants, many more medicinal plants were found which contain natural antioxidants that have shown beneficial therapeutic potentials. Several studies have demonstrated that plant(s) produce potent antioxidants. The majority of the antioxidant activity is due to the flavones, isoflavones, flavonoids, anthocyanin, catechins, isocatechins, phenolic compounds and tannins [1].

The term ‘antioxidant’ refers to the activity of numerous vitamins, minerals, and other phytochemicals to protect against the damage caused by reactive oxygen species (ROS). By their ability to react with and damage many structures in the body, ROS are involved in various physiological processes and diseases such as ageing, cancer, diabetes and atherosclerosis etc. [2].

Clinical trials and epidemiological studies have established an inverse correlation between the intake of fruits and vegetables and the occurrence of diseases such as inflammation, cardiovascular disease, cancer, and aging-related disorders. Dietary antioxidants, including polyphenolic compounds, vitamins E and C, and carotenoids, are believed to be the effective nutrients in the prevention of these oxidative stress related diseases. Antioxidants have thus become a topic of increasing interest recently. A literature search revealed that the number of publications on antioxidants and oxidative stress has nearly quadrupled in the past decade (1684 in 2003; 6510 in 2013). It is of great interest to the general public, medical and nutritional experts, chemists and health and food science researchers to know the antioxidant capacity and constituents in the foods we consume and other natural products [3].

Calpurnia aurea is a genus of Flowering Plants within the family of fabaceae. The genus comprises shrubs or small trees in or along the margin of forests in many parts of Ethiopia and widely distributed in Africa from Cape Province to Eritrea and which also occurs in Southern India [4]. Literature survey brings to light that, all parts of the plant species has been used for different human and animal disease [5]. In native countries like Ethiopia, traditionally, the leave and powdered roots of Calpurnia aurea is used for the treatment of syphilis, malaria, rabies, diabetes, lung TB, hypertension, diarrhoea, leishmaniasis, trachoma, elephantiasis, fungal diseases, different swellings, stomach-ache, abscesses, bowel, bladder disorders, to destroy maggots, to destroy lice, to relieve itches, used as a fish-poison or as a cure for dysentery, exhibit activity against amoebiasis and giardiasis, cough and snake bite [6]. Plant products have been part of phytomedicines since time immemorial. These can be derived from any part of the plant like stem bark, leaves, flowers, seeds and root i.e., any part of the plant may contain active components. Knowledge of the chemical constituents of plants is desirable because such information will be of value for the synthesis of complex chemical substances [7].

Thus, here in this study, qualitative and quantitative antioxidant activities analysis of the root extracts of Calpurnia aurea were assessed by using Spectrophotometric and Thin Layer Chromatography (TLC) methods. I hope that the findings from this work may add to the overall value of the medicinal potential of the plant species.

The plant sample of the study was collected from around Jimma Arjo highland (East Wollega Zone, about 50 km away from Nekemte town to the south-west direction, Western Ethiopia) at the end of June 2016 and the identity of the plant was confirmed by botanical scholars from Wollega University Biological Science Department with the reference of National Museums of Ethiopia Herbarium. Appropriate voucher specimen designated was deposited at the School of Botanical science, Wollega University.

Extraction

The whole root part was washed in tap water and cut in to small bits to facilitate drying. After weighing the wet sample, it was hot-air ovendried below 55°C for 14 h until it came to constant weight. Then the preliminary quantitative moisture difference was calculated and the complete dry sample was powdered to suitable size first the root bark and the inner part separately, and then homogenized. The powdered sample was stored in clean glassware container. The prepared powder weighed (380 g) and then macerated by using four organic solvents hexane (99%), chloroform (99.9%), ethanol (97%) and methanol (99.8%) according to their increasing polarity index for 72 hours with mechanical shaking within 4 hours interval in average and it was filtered through Whatman No.1 filter paper and the filtrate was dried using Rotary evaporator.

In vitro antioxidant activity assay

The quantitative and qualitative analysis of In vitro antioxidant activity was done to assess the antioxidant potential of the Calpurnia aurea root extract by using DPPH scavenging assay method and ethanol as solvent selectively. The In vitro antioxidant of Calpurnia aurea root extract was measured using DPPH according to Choi et al. [8].

Using spectrophotometric method

The DPPH radical-scavenging activity of the test extracts was examined according to the procedures as follows: 1 mL of different concentrations, 10 μg/mL, 20 μg/mL, 40 μg/mL, 60 μg/mL, 80 μg/mL, and 100 μg/mL, of each extract and standard were taken in different test tubes at an equal volume and to these solutions, 3 mL of ethanol solution of DPPH (0.1 mM) was added and the mixture was allowed to react at room temperature in the dark within 30 minutes of incubation. Vitamin C (ascorbic acid) was used as standard controls. Three replicates were made for each test sample. After 30 minutes, the absorbance (A) was measured at 517 nm and converted into the percentage antioxidant activity and interpreted in terms of % scavenged. IC₅₀ value (concentration of sample where absorbance of DPPH decreases 50% with respect to absorbance of the control) of extracts were determined. The higher the antioxidant activity, the lower IC₅₀ value [7].

Using Thin Layer Chromatography (TLC) method

The in-vitro antioxidant activity of Calpurnia aurea root extract was measured using DPPH according to Choi et al. [8]. The experiment was conducted in two ways: solvent fractionation and reagent spraying.

Thin-layer chromatography was carried out on all the fractions using TLC pre-coated plates (silica gel 60F254) by using one way ascending technique. The plates were activated in an oven at 100°C for 20 min to drive off the water molecule that bond to the polar site on the plate. And then the plates were cut with surgical blade and marked with pencil about 1 cm from the bottom of the plate. The extracts to be analysed were diluted with respective solvents (n-hexane, chloroform, ethanol and methanol) and then spotted with help of capillary tube just 1 cm above its bottom and allowed to dry. The plates were developed in a chromatographic tank or chamber using the different solvent systems. Solvents were analysed as its order of increasing polarity. After several trials, the best solvent system was selected which showed good positive result upon color detection. For each test, the plates were dried and visualized under normal day light after spraying with DPPH in ethanol solution reagent and approved by using UV lamp [9].

According to Choi et al., [8] the developed bands were sprayed with spraying reagents by using 2.5 μL micropipette of the prepared sample solution as stated above and observed in daylight and by using UV lamp after being dried. For application of simple diffusion of 0.1 mM DPPH ethanol solutions on the dried plate carrying sample spot, in vitro antioxidant properties of these various concentrations of four different solvents extract of Calpurnia aurea root part (100, 200, 300 mg/ 100 mL for each) were tested. The spot exhibiting radical scavenging activity of the antioxidant against the color of the background was observed and related in both cases. The experiment was performed in triplet.

In vitro antioxidant activity by using spectrophotometric method

Ethanol extract of the root sample of Calpurnia aurea has shown better antioxidant activity when compared to the standard reference (ascorbic acid, which was 86.88%) and other extracts tested. The ethanol root extract has shown 81.63% of antioxidant activity at 100 μg/mL as compared to others (chloroform, methanol, and n-hexane i.e., 71.72%, 36.40% and 26.14%, respectively) solvents root extract. Hexane root extract showed very weak or negligible activity. All the antioxidant activities in different concentrations are shown as a bar and line graphs in Figures 1 and 2 respectively.

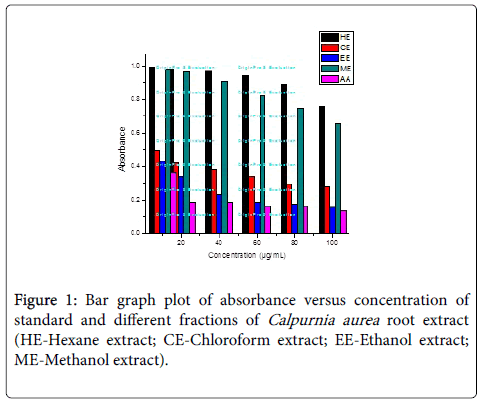

Figure 1: Bar graph plot of absorbance versus concentration of standard and different fractions of Calpurnia aurea root extract (HE-Hexane extract; CE-Chloroform extract; EE-Ethanol extract; ME-Methanol extract).

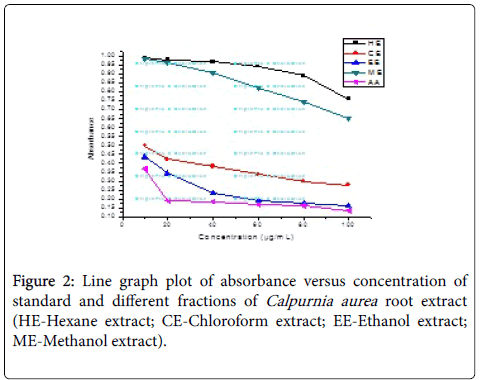

Figure 2: Line graph plot of absorbance versus concentration of standard and different fractions of Calpurnia aurea root extract (HE-Hexane extract; CE-Chloroform extract; EE-Ethanol extract; ME-Methanol extract).

From the antioxidant activity, the IC₅₀ values of test and standard samples were determined. The standard i.e., ascorbic acid shows 16.33 μg/mL IC₅₀ value. In the various extracts the ethanol root showed 23.60 IC₅₀ value which is less in all extracts. After the ethanol IC₅₀ value, chloroform extract show relatively significant IC₅₀ value which was 48.46. The other two extracts i.e., hexane and methanol showed very high IC₅₀ value which was 198.14 and 141.42 μg/mL. The experimental analysis of all extracts showed that for the entire examined root extracts rank order in terms of % antioxidant activity efficiency was always: ethanol>chloroform>Methanol>hexane. But it was also observed that all the sample extracts have lesser activity than that of standard ascorbic acid which was found IC₅₀ value 16.33 μg/mL in the ethanol solution shown by Figure 3.

Figure 3: Plot of % DPPH radical scavenging activity versus concentration of standard and different fractions of Calpurnia aurea root extract (HE-Hexane extract; CE-Chloroform extract; EEEthanol extract; ME-Methanol extract).

The percentage inhibition in Calpurnia aurea root extract and standard Ascorbic acid Vs. concentration showed that the antioxidant activities of 97% ethanol extract of Calpurnia aurea root and the standard Ascorbic acid was found to be positively correlated with the % inhibition as determined from their corresponding regression curves. This comparison suggested that the solvent extracts are relatively potential antioxidant agents and compatible with the commercial antioxidant agent. However, that of methanol is not correlated. Table 1 below shows for all In vitro antioxidant activity assay results by using spectrophotometric method.

In vitro antioxidant activity by using TLC method

The antioxidant capacities of the root of Calpurnia aurea plant extracts as measured by the DPPH method qualitatively are presented in Figure 4 below.

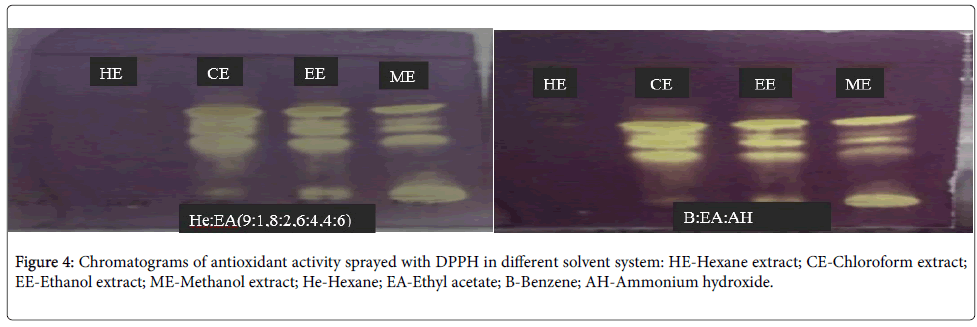

Figure 4: Chromatograms of antioxidant activity sprayed with DPPH in different solvent system: HE-Hexane extract; CE-Chloroform extract; EE-Ethanol extract; ME-Methanol extract; He-Hexane; EA-Ethyl acetate; B-Benzene; AH-Ammonium hydroxide.

The plant extracts which were run under the EMW (40:5.4:5) solvent system showed similar activity with the above solvent systems shown in Figure 4. In the chromatograms sprayed by DPPH ethanol solution, ethanol and chloroform showing stronger antioxidant activity in all solvent systems used next to which methanol extract comes where as there is no or almost negligible activity indicated by hexane extract. This is related to the science of polarity of the components of the compounds present in the extractants. On the other hand, the direct diffusion that was applied based on three different respective concentrations of the sample extracts showed significant results.

The Thin-Layer Chromatography (TLC) plate immersed in DPPH solution loaded with 300 mg/100 mL of the root extract of ethanol solvent showed highest reducing ability. To some extent, similar result but less strong were obtained from chloroform and methanol extracts (Figure 5).

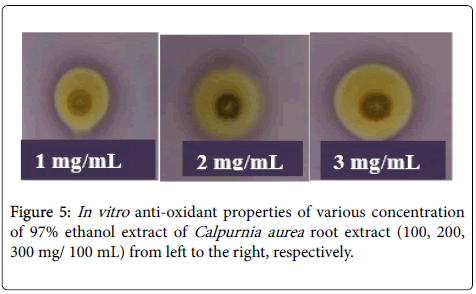

Figure 5: In vitro anti-oxidant properties of various concentration of 97% ethanol extract of Calpurnia aurea root extract (100, 200, 300 mg/ 100 mL) from left to the right, respectively.

Gorinstein et al. [10] has reported that the high antioxidant activity of plant extracts were due to the presence of high phenolic, tannins and flavonoids compounds which are polar compounds in the hydroalcoholic or alcoholic extracts. In addition, [11] Guha has conducted a study that showed that the polar solvent extract (lower molecular weight alcohols and aqueous) possessed a higher antioxidant activity when compared to non- polar (e.g., hexane) or low polar (e.g., chloroform) extracts over 56 different type of plants. There have been also many studies reported that the other parts of the plant species showed significant DPPH radical scavenging activity and possessed high antioxidant activity. The stems and leaves of Calpurnia aurea showed significant activity where the leaves showing higher potential when evaluated by using DPPH and FRAP standard methods [12]. The extract showed significant activities in all antioxidant assays compared to the reference antioxidant ascorbic acid in a dose dependent manner [13,14].

Here in the present study, ethanol extract of the root part of Calpurnia aurea has shown better antioxidant activity at 100 μg/mL when compared to the standard reference (ascorbic acid, which was 86.88%) and other extracts tested. The ethanol root extract has shown 81.63% of antioxidant activity as compared to others (chloroform, methanol, and n-hexane i.e., 71.72%, 36.40% and 26.14%, respectively) at the same concentration. Hexane root extract showed very weak or negligible activity.

The result obtained from methanol extract seemed odd when seen in the science of polarity perspective and results shown by different authors on other different parts of Calpurnia aurea or other plant species. This can be explained based on the science of chemical kinetics and working nature of DPPH chemical.

Sanchez-Moreno, et al. classified the kinetic behaviour of the antioxidant compound as follows: < 5 min (rapid), 5-30 min (intermediate), and >30 min (slow). A representative kinetic curve of a DPPH assay is shown in Figure 6.

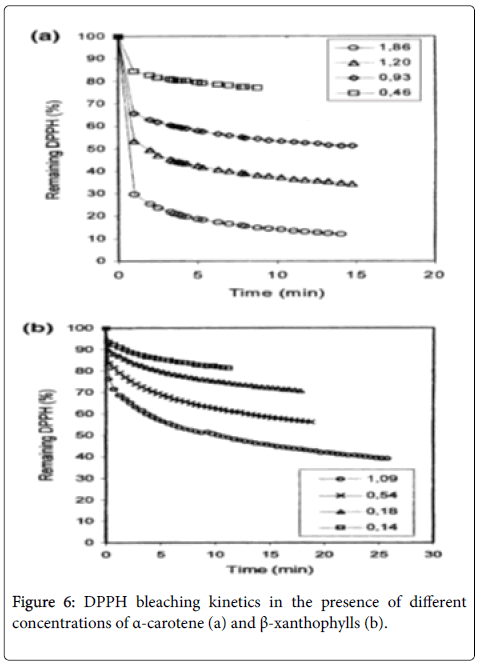

Figure 6: DPPH bleaching kinetics in the presence of different concentrations of α-carotene (a) and β-xanthophylls (b).

Although the DPPH assay is widely applicable, there are some disadvantages that limit its usage. Besides the mechanistic difference from the HAT reaction that normally occurs between antioxidants and peroxyl radicals, DPPH is long-lived nitrogen radical, which bears no similarity to the highly reactive and transient peroxyl radicals involved in lipid peroxidation. Many antioxidants that react quickly with peroxyl radicals may react slowly or may even be inert to DPPH. This is evident from the TEC50 values ranging from 1.15 min (ascorbic acid) to 103 min (rutin). Consequently, the antioxidant capacity is not properly rated. The reaction kinetics between DPPH and antioxidants are not linear to DPPH concentrations (Figure 6).

According to this study, the methanol extract of Calpurnia aurea root gave the highest percentage yield of extraction and followed by ethanol in contrast to n-hexane extract indicating that the root extract contained more polar compounds than non-polar compounds.

The DPPH assay showed that ethanol extract gave the highest antioxidant activity even at low concentration and chloroform extract also can be a potential antioxidant agent as it was able to scavenge high percentages of free radical. The qualitative thin layer chromatography also revealed that the Calpurnia aurea root extract contained several polar and slightly non polar compounds as they did show higher positive results for all solvents extract (except hexane extract) showing yellowish colour spots on purple background upon spraying and diffusing DPPH methanol solution on developed chromatogram. The ethanol extract showed significant antioxidant activity in comparative to standard ascorbic acid means that in future this plant may found the main source for drug supplement as an antioxidant since the antioxidant activity has potential in the treatment of cancer, cardiovascular disease, neural disorders, Alzheimer’s disease, mild cognitive impairment, Parkinson’s disease, alcohol induced liver disease, ulcerative colitis, aging and atherosclerosis. The exploitation of these pharmacological properties involves further investigation of these active ingredients by implementation techniques of extraction, purification, separation, crystallization, characterisation and identification.
